26 & 36 tap changer position to BCD decoders - BCD 100 / 26 & BCD 100 / 36

26 & 36 input to BCD decoder, 24V-250VDC, Ediseja 21













Description:

Tap changer BCD 100 decoder reduces system cost by reducing number of information (reduction in number of terminals, cable wires and bay computer digital inputs) to the bay computer from 26 (36) to 6.
High to medium voltage transformer tap changer position defines transformer output voltage. For SCADA operator is important to know which tap is currently in use. That information is usually provided by bay computer. Tap changer has many tap positions and that would take many terminals, cable wires and digital inputs on bay computer, which is not economic. BCD decoder reduces that cost by transforming 26 (BCD 100 / 26) or 36 (BCD 100 / 36) tap changer position into 6 with BCD code without additional power supply.

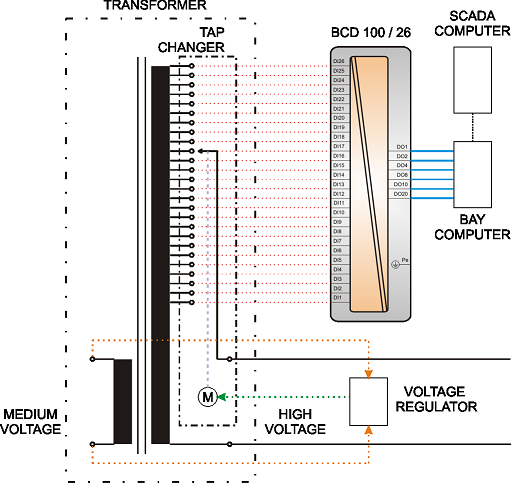

Typical application:





















































Features:

- 26 or 36 inputs version
- 24 V-220 V DC input voltage
- Enclosure size BCD 100 / 26 - 40 mm(W), BCD 100 / 36 - 60 mm(W) x 105 mm(H) x 111 mm(D)
- Standard DIN 35 rail mount
- No power supply needed

icon icon icon icon icon









Schematic:

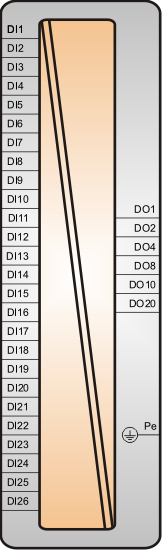

26 tap changer inputs to BCD decoder, 24V-250VDC, Ediseja 21

BCD 100 / 26

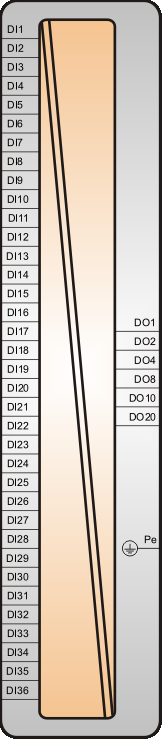

36 tap changer inputs to BCD decoder, 24V-250VDC, Ediseja 21

BCD 100 / 36







Model types:

BCD 100 / 26 ... 26 tap changer inputs to BCD decoder

BCD 100 / 36 ... 36 tap changer inputs to BCD decoder
