Circuit breaker / feeder simulators

Description:

Circit breaker / feeder simulator CBS is speeds up switchgear cabinets Factory Acceptance Test by simulating circuit breaker and disconnector and earthing switch positions. Position changes when CBS receives command.
Switchgear cabinets for medium and high voltage switchgears are ussually wired and tested without switchgear. For testing purpose disconnectors and circuit breakers position is needed. Circit breaker / feeder simulator CBS is intended for simulating circuit breaker and disconnector positions. Simulator CBS come in many variants according to customer requirements. It can simulate one circuit breaker or whole feeder. Power supply & command voltage can be selected by user by connecting one wire to correct terminal. User can select between following voltages 24 V DC, 48 V DC, 110 V DC, 220 V DC.

Types (examples):

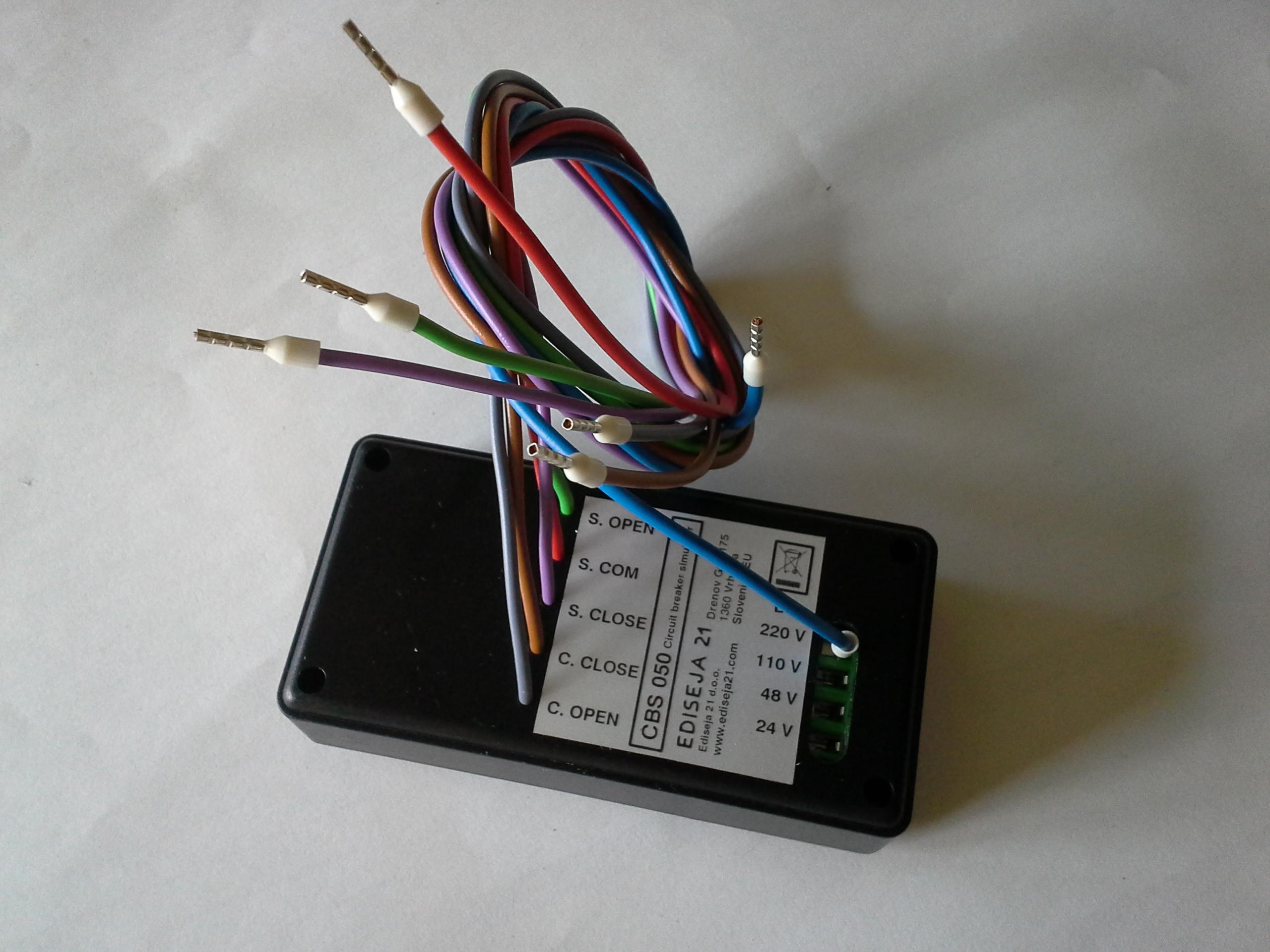

	CBS 050 - circuit breaker simulator - 1 element -input: command ON and OFF (C. CLOSE / C. OPEN) -output: state ON and OFF (S. CLOSE / S. OPEN) -voltage (plus pole): (S.COM) -voltage (minus pole): 24 V DC, 48 V DC, 110 V DC, 220 V DC - (selectable with single wire) -wire lenght 1,5 m -during test simulator can freely hangs on the wires

	CBS 060 - circuit breaker simulator - 1 element -input: command ON and OFF ("impulse" I / "impulse" 0) -output: state ON and OFF (I / 0) -voltage (plus pole): (+) -voltage (minus pole): 24 V DC, 48 V DC, 110 V DC, 220 V DC - (selectable with single wire) -LED state indicator (red - OFF / green - ON) -buttons for state change (red - OFF / green - ON) -DIN35 rail mount 72 mm width

	CBS 070 - feeder simulator - up to 8 elements -input: command ON and OFF ("impulse" I / "impulse" 0) -output: state ON and OFF (I / 0) -voltage (plus pole): (+) -voltage (minus pole): 110 V DC, 220 V DC - (selectable with single wire) -LED state indicator (red - ON / green - OFF) -cables lenght 2 m -attaching to DIN 35 rail or cable holders with mounting brackets or laying on the table -120 mm(h) x 80 mm(w) x 50 mm(d)

Those are just some of the variants. User can define his or her own requirements; different numbers of elements, different voltages, housing types, wire and cable lenghts, terminal types,...
