Local signalization unit, alarm annunciator - 32 channel - LSU 110 / 32

32 channel alarm annunciator signalization unit with IEC 60870 5 103 protocol photo













Description:

LSU 1x0 device is intended for local signalization in power distribution substations. It is also called alarm annunciator. Power supply and binary inputs are made for standard voltages in substations; DC 24 V, DC 48 V, DC 110 V, DC 220 V or AC 230 V depends on ordering. Speed and mode of lamp flashing depends on setting and can be changed by buttons on front side of device. LSU 110 / 32 device has 32 signal binary inputs, which controls 32 lamps. Additional 4 DIs for remote lamp and horn acknowledge and test. Davice has 6 additional DOs for controlling remote lamp and horn and external lamp test.

Device has installed IEC 60870-5-103 slave protocol and is capable to communicate with device with installed IEC 60870-5-103 master protocol. It supports link reset, class I, class II, general interrogation, time synhronization (broadcast & single device) & general command.



Features:

32 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icon dimensions32 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icon inputs32 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icons groups 8x432 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icons groups 1x132 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icons input voltages32 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icons power supply voltages32 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icons PC free32 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icons IEC60870_5_10332 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icon RS23232 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol icon RS485













Schematics:

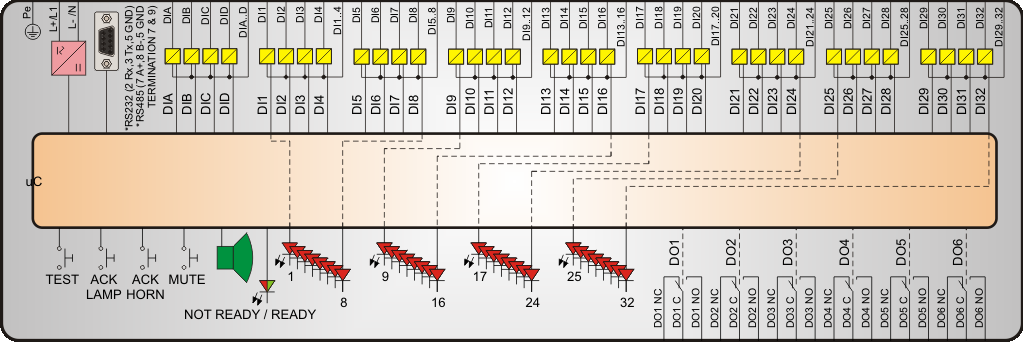

(4 DIs per group)

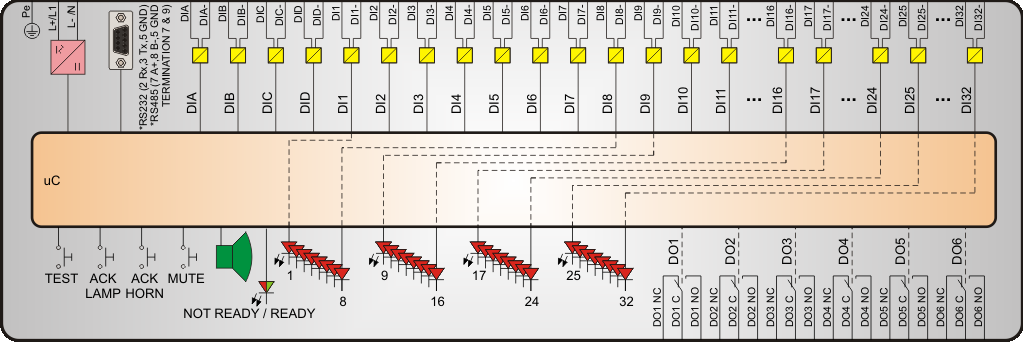

(separated DIs)

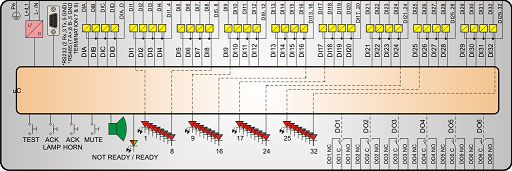

32 channel alarm annunciator signalization unit with IEC 60870-5-103 protocol-schematic

















Model types:

DI voltage
LEDs colour
Option
Types
DC 24 V
red
-
LSU 110 / 32.1.1.V.R
yellow
-
LSU 110 / 32.1.1.V.Y
red
separted DIs
LSU 110 / 32.1.1.V.R.S
yellow
separted DIs
LSU 110 / 32.1.1.V.Y.S
DC 48 V
red
-
LSU 110 / 32.2.2.V.R
yellow
-
LSU 110 / 32.2.2.V.Y
red
separted DIs
LSU 110 / 32.2.2.V.R.S
yellow
separted DIs
LSU 110 / 32.2.2.V.Y.S
DC 110 V
red
-
LSU 110 / 32.3.3.V.R
yellow
-
LSU 110 / 32.3.3.V.Y
red
separted DIs
LSU 110 / 32.3.3.V.R.S
yellow
separted DIs
LSU 110 / 32.3.3.V.Y.S
DC 220 V
red
-
LSU 110 / 32.4.4.V.R
yellow
-
LSU 110 / 32.4.4.V.Y
red
separted DIs
LSU 110 / 32.4.4.V.R.S
yellow
separted DIs
LSU 110 / 32.4.4.V.Y.S
AC 230 V
red
-
LSU 110 / 32.5.5.V.R
yellow
-
LSU 110 / 32.5.5.V.Y
red
separted DIs
LSU 110 / 32.5.5.V.R.S
yellow
separted DIs
LSU 110 / 32.5.5.V.Y.S



Downloads:

acrobatFlyer

acrobatUser manual
