Products for Power Generation, Transmission and Substations:

USB to 16x serial port extender unit - PEU 016 (NEW)

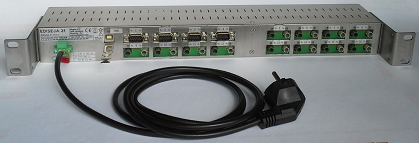

PEU016 photo













USB to 16x serial port extender unit PEU 016 is device that adds up to 16 serial ports to the PC via USB port. Those ports are intended for connection to the protection relays, voltage regulators, power meters and other equipment on the power substation. PEU 016 supports RS232, RS485 and multimode (820 nm) fiber optic communication. Power supply input voltages are standard substation voltages; 110 V-250 V DC, or 230 V AC.
PC USB drivers are written for every commonly used operating systems; WIN7, WIN8, WIN10, Linux,....
More...



Trip circuit supervision relay - TCS

Trip Circuit Supervision Relay For Combiflex SPER 1C1 and RXEM 1 Replacement TCS411CTrip Circuit Supervision Relay For DIN35 rail TCS421DTrip Circuit Supervision Relay For Panel Mount TCS461P









Trip circuit supervision relay TCS provides customer mounting flexibility (3 different mounting styles - DIN35, panel mount, Combiflex), reduces cost and space requirements (it can supervise from one up to three coils circuits in single relay) and provides two principles of operation (supplied with active supply or it is passively supplied). Input voltages are standard substation voltages; 24 V DC, 48 V DC, 110 V DC, 125 V DC, 220 V DC.
For proper electrical networks operation, proper protection and circuit breaker operation in meduim and high voltage substations is crucial. For proper circuit breaker operation, healty trip coil circuit is crucial. The healtiness of circuit breaker trip coil circuit is monitored by the trip circuit supervision relay TCS which monitors the circuit in open and close circuit breaker position (ANSI 74TC). In normal operation TCS supervision relay is always energised. In case of trip coil circuit fault, trip voltage fault or TCS relay fault, supervision relay will deenergise and indicate "Trip Circuit Fault".
More...



BCD decoder - BCD 100 / x

BCD 100/26 - 26 input tap changer position to BCD code decoder

Tap changer BCD 100 decoder reduces system cost by reducing number of information (reduction in number of terminals, cable wires and bay computer digital inputs) to the bay computer from 26 (36) to 6 (7).
High to medium voltage transformer tap changer position defines transformer output voltage. For SCADA operator is important to know which tap is currently in use. That information is usually provided by bay computer. Tap changer has many tap positions and that would take many terminals, cable wires and digital inputs on bay computer, which is not economic. BCD decoder reduces that cost by transforming 26 (BCD 100 / 26) or 36 (BCD 100 / 36) tap changer position into BCD code without additional power supply.More...









Circuit breaker / feeder simulators - CBS

Circuit breaker/disconnector simulator for Factory Acceptance Test - CBS 050Circuit breaker/disconnector simulator for Factory Acceptance Test - CBS 060Circuit breaker/disconnector/feeder simulator for Factory Acceptance Test - CBS 070

















Circit breaker / feeder simulator CBS is speeds up switchgear cabinets Factory Acceptance Test by simulating circuit breaker and disconnector positions.
Switchgear cabinets for medium and high voltage switchgears are ussually wired and tested without switchgear. For testing purpose disconnectors and circuit breakers position is needed. Circit breaker / feeder simulator CBS is intended for simulating circuit breaker and disconnector positions. Simulator CBS come in many variants according to customer requirements. It can simulate one circuit breaker or whole feeder.More...



2 port communication media converters - CMU 100 / x.x.x

RS232 to RS485 Converter 110-220VDC Ediseja 21 CMU100/1.1.5RS485 to Multimode Fiber Optic Converter 110-220VDC Ediseja 21 CMU100/1.5.6RS232 to Multimode Fiber Optic Converter 110-220VDC Ediseja 21 CMU100/1.6.1RS232 to Ethernet 10/100BASE-TX Converter 110-220VDC Ediseja 21 CMU100/1.1.9RS485 to Ethernet 10/100BASE-TX Converter 110-220VDC Ediseja 21 CMU100/1.5.9Multimode Fiber Optic to Ethernet 10/100BASE-TX Converter 110-220VDC Ediseja 21 CMU100/1.6.9RS232 to Singlemode Fiber Optic Converter 110-220VDC Ediseja 21 CMU100/1.1.SRS485 to Singlemode Fiber Optic Converter 110-220VDC Ediseja 21 CMU100/1.5.SMultimode Fiber Optic to Singlemode Fiber Optic Converter 110-220VDC Ediseja 21 CMU100/1.6.S











2 port communication media converter CMU 100 provides a customer many options with designing his communication with equipment on the substation (protection relays, voltage regulators, energy meters,.....). It provides conversion between RS232, RS485, multimode (660 nm - plastic & 820 nm - glass) fiber optic, singlemode (1300 nm & 1310 nm) fiber optic, 10/100BASE-TX (ethernet) and 100BASE-FX (fiber optic ethernet).Converters power supply is designed for standard substation voltages; 24 V DC, 48 V DC, 110 V DC, 125 V DC, 220 V DC, 230 V AC.
There is a lot of equipment on the substion that need to communicate to the remote data center. Communication media converters are needed to convert data betwee many standardised electrical communication levels (RS232, RS485,..) and medias (wire, plastic & glass optic
fibre).More...



3-4 port communication media converters & star couplers - CMU 100 / x.x.x.x.x

RS232 to 2xRS232 Star Coupler 110-220VDC Ediseja 21 CMU100/2.1.1.1RS232 to 2xMultimode Fiber Optic Star Coupler 110-220VDC Ediseja 21 CMU100/2.1.6.6











3-4 port communication media converter / star coupler CMU 100 provides a customer many options with designing his communication with equipment on the substation (protection relays, voltage regulators, energy meters,.....). It provides conversion between RS232, RS485, multimode (660 nm - plastic & 820 nm - glass) fiber optic, singlemode (1300 nm & 1310 nm) fiber optic, 10/100BASE-TX (ethernet) and 100BASE-FX (fiber optic ethernet). Converters power supply is designed for standard substation voltages; 24 V DC, 48 V DC, 110 V DC, 125 V DC, 220 V DC, 230 V AC.
There is a lot of equipment on the substion that need to communicate to the remote data center. Communication media converters are needed to convert data betwee many standardised electrical communication levels (RS232, RS485,..) and medias (wire, plastic & glass optic fibre) ports devices from CMU series are power substations communication converters and star couplers. CMU wide range voltage power supply allows connection to all common power substation DC power supply. Additionaly it can be also connected to standard AC voltages.
More...





5-8 port communication media converters & star couplers - CMU 100 / x.x.x.x.x.x.x.x.x

RS232 to 7xMultimode Fiber Optic Converter Star Coupler 110-220VDC Ediseja 21 CMU100/2.1.6.6.6.6.6.6.6RS485 to 7xMultimode Fiber Optic Converter Star Coupler 110-220VDC Ediseja 21 CMU100/2.5.6.6.6.6.6.6.6Ethernet 10/100BASE-TX to 7xMultimode Fiber Optic Converter Star Coupler 110-220VDC Ediseja 21 CMU100/2.9.6.6.6.6.6.6.6Multimode Fiber Optic to 7xRS232 Converter Star Coupler 110-220VDC Ediseja 21 CMU100/2.1.6.6.6.6.6.6.64xMultimode Fiber Optic to 4xRS232 Converter 110-220VDC Ediseja 21 CMU100/2.6.1.6.1.6.1.6.1











5-8 port communication media converter / star coupler CMU 100 provides a customer many options with designing his communication with equipment on the substation (protection relays, voltage regulators, energy meters,.....). It provides conversion between RS232, RS485, multimode (660 nm - plastic & 820 nm - glass) fiber optic, singlemode (1300 nm & 1310 nm) fiber optic, 10/100BASE-TX (ethernet) and 100BASE-FX (fiber optic ethernet). Converters power supply is designed for standard substation voltages; 24 V DC, 48 V DC, 110 V DC, 125 V DC, 220 V DC, 230 V AC.
There is a lot of equipment on the substion that need to communicate to the remote data center. Communication media converters are needed to convert data betwee many standardised electrical communication levels (RS232, RS485,..) and medias (wire, plastic & glass optic fibre) ports devices from CMU series are power substations communication converters and star couplers. CMU wide range voltage power supply allows connection to all common power substation DC power supply. Additionaly it can be also connected to standard AC voltages.
More...





40 port communication media converters & star couplers - CMU 200

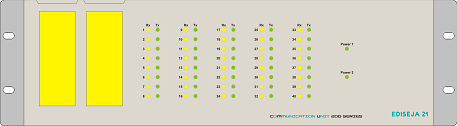

CMU











40 port communication media converter / star coupler CMU 100 provides a customer many options with designing his communication with equipment on the substation (protection relays, voltage regulators, energy meters,.....). It provides conversion between RS232, RS485, multimode (660 nm - plastic & 820 nm - glass) fiber optic, singlemode (1300 nm & 1310 nm) fiber optic, 10/100BASE-TX (ethernet) and 100BASE-FX (fiber optic ethernet). Converters power supply is designed for standard substation voltages; 24 V DC, 48 V DC, 110 V DC, 125 V DC, 220 V DC, 230 V AC.
There is a lot of equipment on the substion that need to communicate to the remote data center. Communication media converters are needed to convert data betwee many standardised electrical communication levels (RS232, RS485,..) and medias (wire, plastic & glass optic fibre) ports devices from CMU series are power substations communication converters and star couplers. CMU wide range voltage power supply allows connection to all common power substation DC power supply. Additionaly it can be also connected to standard AC voltages.
More...





16 channel signalization devices (alarm annunciators) - LSU 100 / 16



LSULSU 100 / 16 device is 16 channel alarm annunciator intended for local signalization in power distribution substations.
Power supply and binary inputs are made for standard voltages in substations; DC 24 V, DC 48 V, DC 110 V, DC 220 V or AC 230 V depends on ordering. Speed and mode of lamp flashing depends on setting and can be changed by buttons on front side of device. LSU 100 / 16 device has 16 signal binary inputs, which controls 16 lamps. Additional DI for remote lamp acknowledge and two additional DOs for controlling remote lamp and horn are optional.More...









32 channel signalization devices (alarm annunciators) - LSU 110 / 32

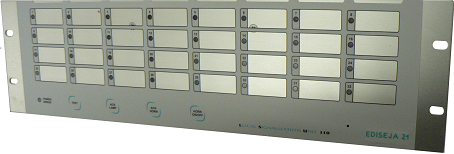

32 channel alarm annunciator signalization unit with IEC 60870 5 103 protocol photo













LSU 110 / 32 device is 32 channel alarm annunciator intended for local signalization in power distribution substations.
Power supply and binary inputs are made for standard voltages in substations; DC 24 V, DC 48 V, DC 110 V, DC 220 V or AC 230 V depends on ordering. Speed and mode of lamp flashing depends on setting and can be changed by buttons on front side of device. LSU 110 / 32 device has 32 signal binary inputs, which controls 32 lamps. It has additional DIs for remote lamp acknowledge and additional DOs for controlling remote lamp and horn. Device has installed IEC 60870-5-103 slave protocol and is capable to communicate with device with installed IEC 60870-5-103 master protocol.More...



4 channel signal transducers - STR 100

STRSTRSTR 100 series transmits statuses of 4 digital inputs to 4 digital outputs to other STR 100 device and vice versa through communication link. Communication link could be optical or ethernet. Fast communication protocol inserts only small delays.
STR 100 device can be used for various of tasks such as distance protection criteria transmitter or switch status transmitter over long distances. More...













4 DI 4 DO acquisition unit - SAU 100

SAUSAUSAU 100 is simple acquisition unit with 4 digital inputs, 4 digital outputs, wide range power supply and IEC 60870-5-103 protocol.More...
