4xDIs, 4xDOs signal transducers - STR 100 series

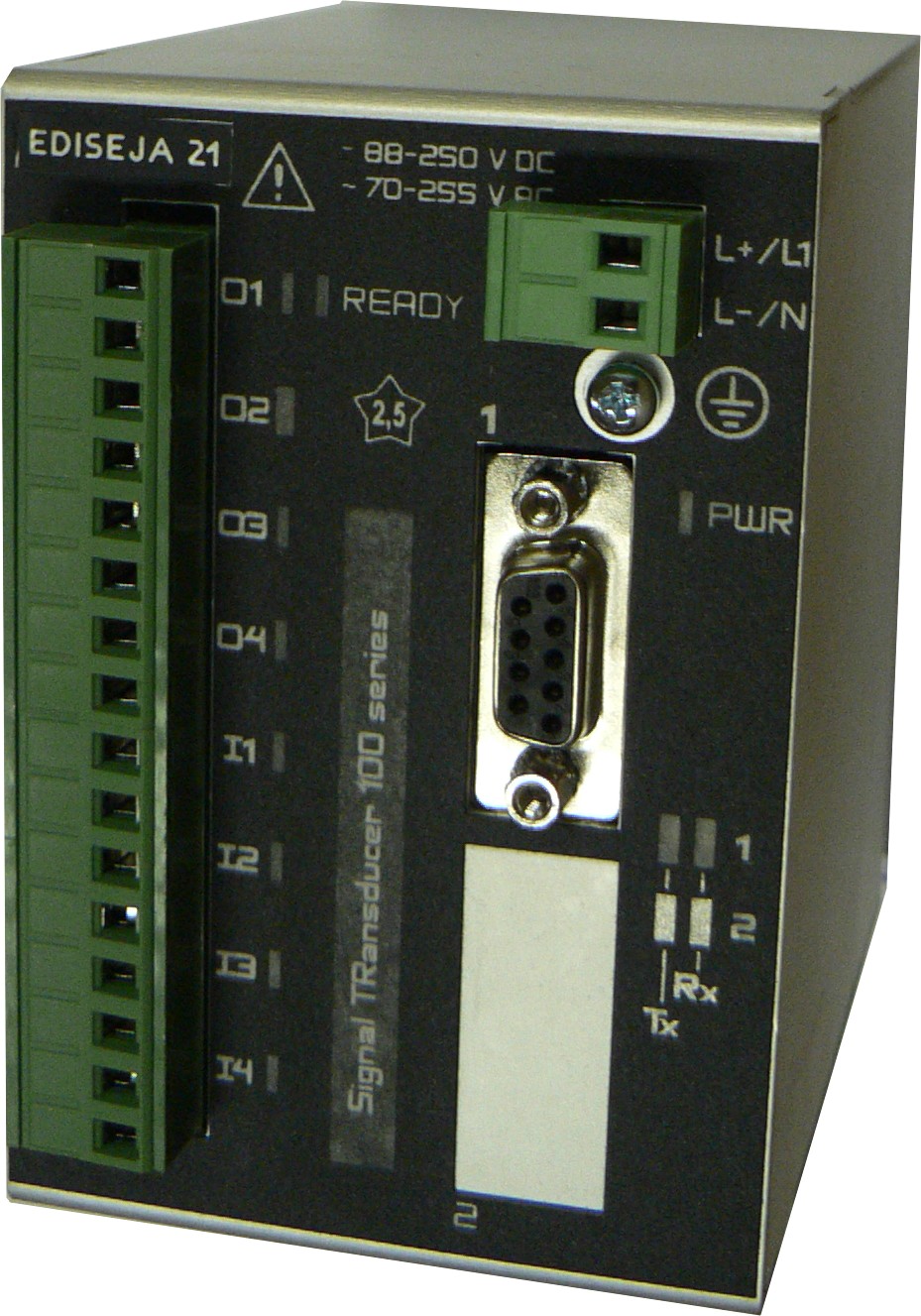

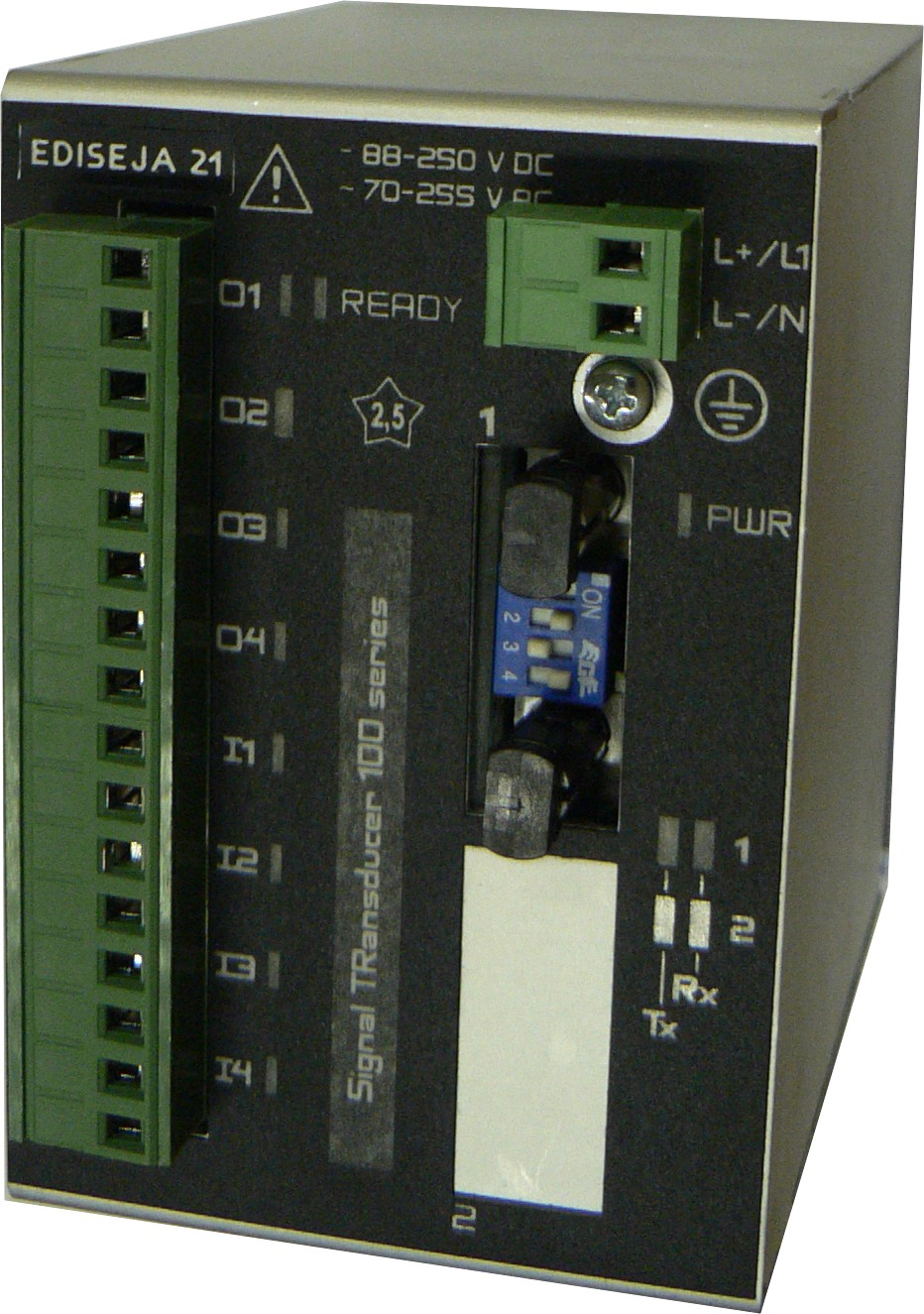

STR photoSTR photo

















Description:

STR 100 is device with 4 digital inputs and 4 digital outputs. Two devices works in pair and must be connected via communication. When digital input on one device is activated, corresponding digital output on the other device is also activated and vice versa. STR 100 device can be used for various of tasks such as distance protection criteria transmitter or switch status transmitter over long distances.

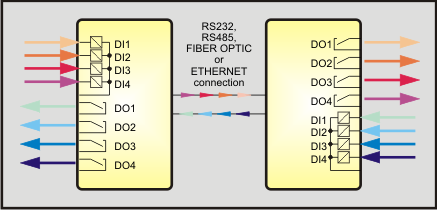

STR schematic



















Features:



- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Enclosure size 70 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Communication activity LED indication on both port- Fast Transition Time

- PC free setup

- 4 Digital inputs

- 4 Digital outputs

- 1 Device ready output

- 1 Communication fail output

- LED Signalization of input and output statuses



Overview:

ICONICONICONICONICONICONICONICONICONICONICON

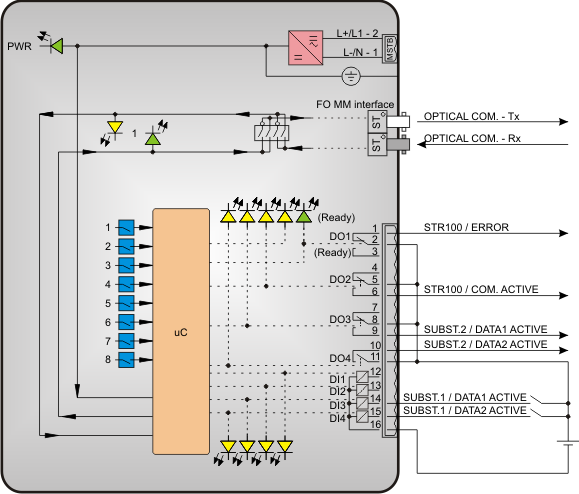

Schematic:

STR

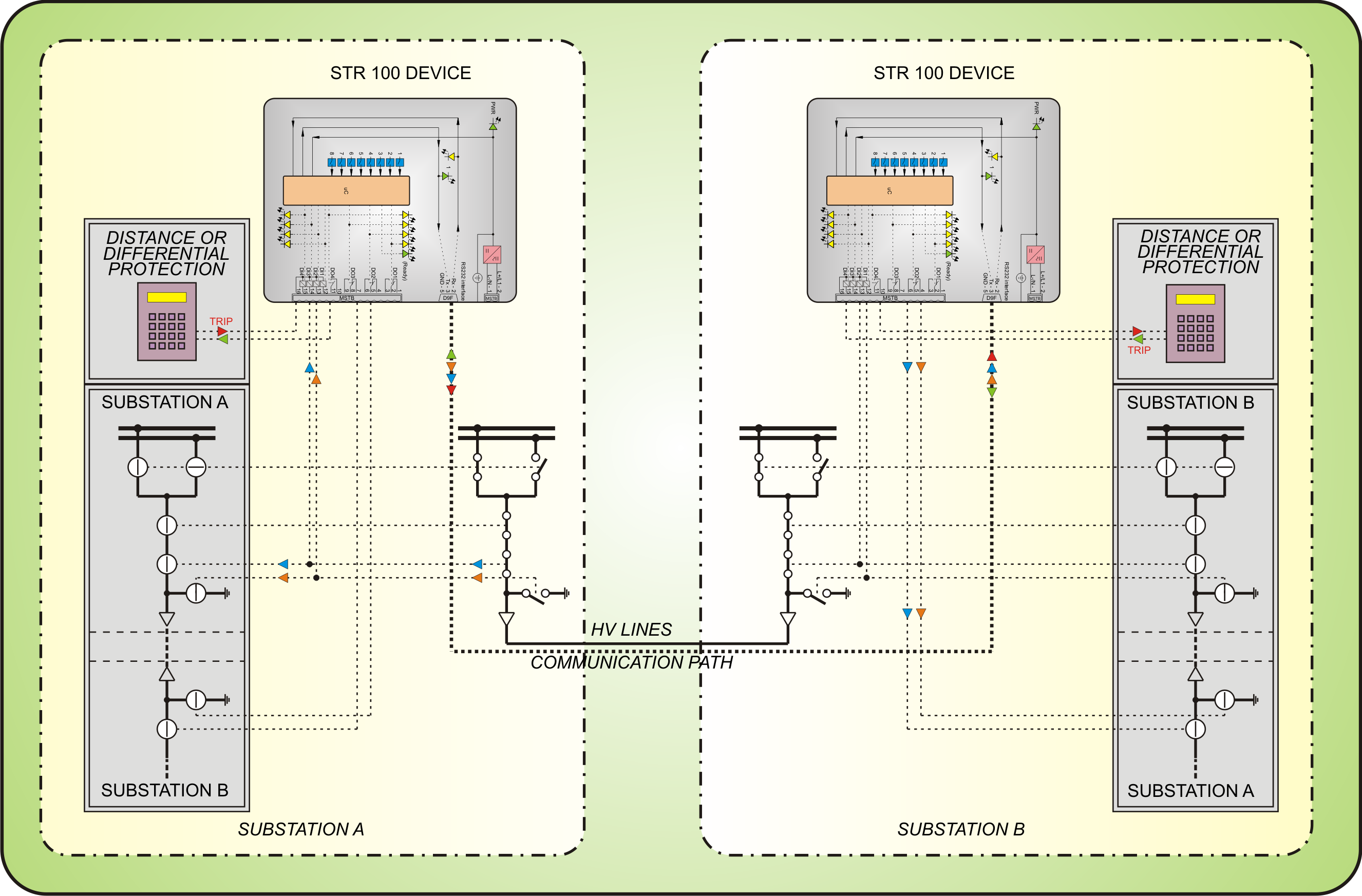

Typical application:

STR 100 application















Model types:

Port 1
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
STR 100/HI.232.NON.IO1 (DI: DC 110 V) STR 100/MD.232.NON.IO4 (DI: DC 48 V)
STR 100/HI.232.NON.IO2 (DI: DC 220 V)
RS485
STR 100/HI.485.NON.IO1 (DI: DC 110 V) STR 100/MD.485.NON.IO4 (DI: DC 48 V)
STR 100/HI.485.NON.IO2 (DI: DC 220 V)
Plastic Fiber Optic
STR 100/HI.FOP.NON.IO1 (DI: DC 110 V) STR 100/MD.FOP.NON.IO4 (DI: DC 48 V)
STR 100/HI.FOP.NON.IO2 (DI: DC 220 V)
Multimode Fiber Optic
STR 100/HI.FOT.NON.IO1 (DI: DC 110 V) STR 100/MD.FOT.NON.IO4 (DI: DC 48 V)
STR 100/HI.FOT.NON.IO2 (DI: DC 220 V)
Singlemode Fiber Optic
STR 100/HI.FOS.NON.IO1 (DI: DC 110 V) STR 100/MD.FOS.NON.IO4 (DI: DC 48 V)
STR 100/HI.FOS.NON.IO2 (DI: DC 220 V)
10/100Base-Tx
STR 100/HI.ETH.NON.IO1 (DI: DC 110 V) STR 100/MD.ETH.NON.IO4 (DI: DC 48 V)
STR 100/HI.ETH.NON.IO2 (DI: DC 220 V)



Downloads:

acrobatFlyer

acrobatUser manual

ICONDevice installer (needed for devices with with ethernet 10/100Base-Tx port)
