Local signalization unit, alarm annunciator - 16 channel - LSU 100 / 16

Alarm annunciator LSU100/16 110-220VDC Ediseja21.com













Description:



LSU 1x0 device is intended for local signalization in power distribution substations. It is also called alarm annunciator. Power supply and binary inputs are made for standard voltages in substations; DC 24 V, DC 48 V, DC 110 V, DC 220 V or AC 230 V depends on ordering. Speed and mode of lamp flashing depends on setting and can be changed by buttons on front side of device.

LSU 100 / 16 device has 16 signal binary inputs, which controls 16 lamps. Additional DI for remote lamp acknowledge and two additional DOs for controlling remote lamp and horn are optional.



Features:



- 16 digital iInputs

- Two modes of operation

- 4 light speeds

- 3 LED colour option

- Standard power supply voltages (DC 24 V, DC 48 V, DC 110 V, DC 220 V or AC 230 V)

- Enclosure size 160 mm (W) x 160 mm (H) x 60 mm (D)

- PC free setup

- 4 independent digital input groups

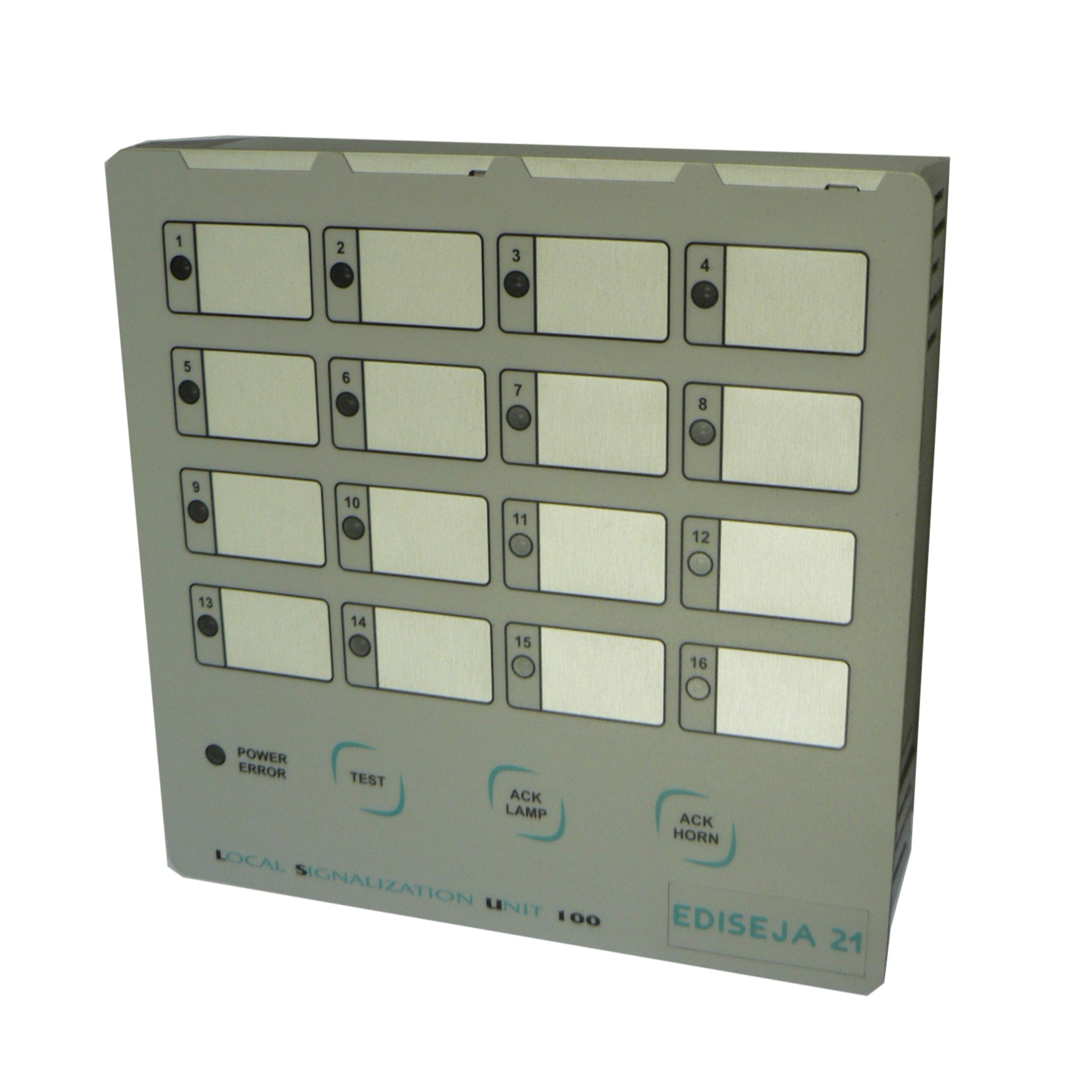

Overview:









Schematics:

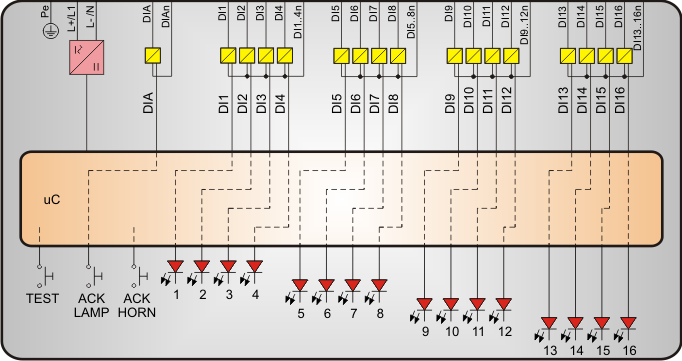

(with option "A")

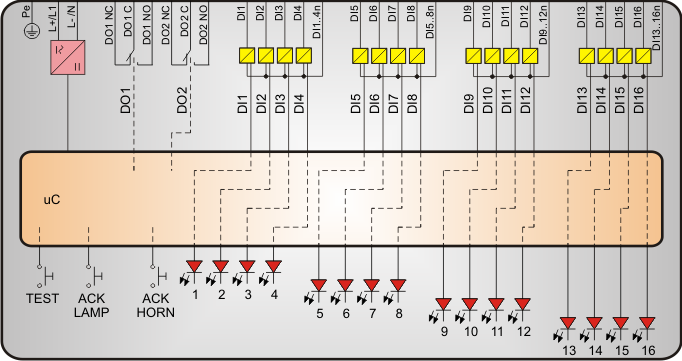

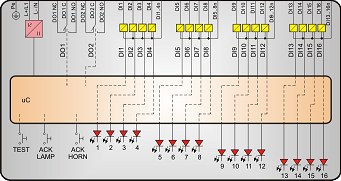

(with option "O")

















Model types:

DI voltage
LEDs colour
Option
Types
DC 24 V
red
-
LSU 100 / 16.1.1.V.R
yellow
LSU 100 / 16.1.1.V.Y
red
A - remote acknowledge input
LSU 100 / 16.1.1.V.R.A
yellow
LSU 100 / 16.1.1.V.Y.A
red
O - external lamp and horn control
LSU 100 / 16.1.1.V.R.O
yellow
LSU 100 / 16.1.1.V.Y.O
DC 48 V
red
-
LSU 100 / 16.2.2.V.R
yellow
LSU 100 / 16.2.2.V.Y
red
A - remote acknowledge input
LSU 100 / 16.2.2.V.R.A
yellow
LSU 100 / 16.2.2.V.Y.A
red
O - external lamp and horn control
LSU 100 / 16.2.2.V.R.O
yellow
LSU 100 / 16.2.2.V.Y.O
DC 110 V
red
-
LSU 100 / 16.3.3.V.R
yellow
LSU 100 / 16.3.3.V.Y
red
A - remote acknowledge input
LSU 100 / 16.3.3.V.R.A
yellow
LSU 100 / 16.3.3.V.Y.A
red
O - external lamp and horn control
LSU 100 / 16.3.3.V.R.O
yellow
LSU 100 / 16.3.3.V.Y.O
DC 220 V
red
-
LSU 100 / 16.4.4.V.R
yellow
LSU 100 / 16.4.4.V.Y
red
A - remote acknowledge input
LSU 100 / 16.4.4.V.R.A
yellow
LSU 100 / 16.4.4.V.Y.A
red
O - external lamp and horn control
LSU 100 / 16.4.4.V.R.O
yellow
LSU 100 / 16.4.4.V.Y.O
AC 230 V
red
-
LSU 100 / 16.5.5.V.R
yellow
LSU 100 / 16.5.5.V.Y
red
A - remote acknowledge input
LSU 100 / 16.5.5.V.R.A
yellow
LSU 100 / 16.5.5.V.Y.A
red
O - external lamp and horn control
LSU 100 / 16.5.5.V.R.O
yellow
LSU 100 / 16.5.5.V.Y.O



Downloads:

acrobatFlyer

acrobatUser manual
