RS232 to RS485 converter - CMU 100 / x.1.5 - 0, CMU 100 / x.1.M - 0 & CMU 100 / x.1.L - 0

CMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htm











Description:

CMU 100 / x.1.5 - 0, CMU 100 / x.1.M - 0, CMU 100 / x.1.L - 0 is 2 port communication converter for RS232 to RS485 communication conversion. Converter power supply is designed for standard substation voltages; 24 V DC, 48 V DC, 110 V DC, 125 V DC, 220 V DC, 230 V AC. CMU 100 has LED indicators for Rx and Tx line on both ports for easier communication traffick. Aluminum housing is intended for DIN 35 rail mounting.



Features:



- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 40 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Communication activity LED indication on both ports

- Galvanic isolation on RS485 port



Overview:

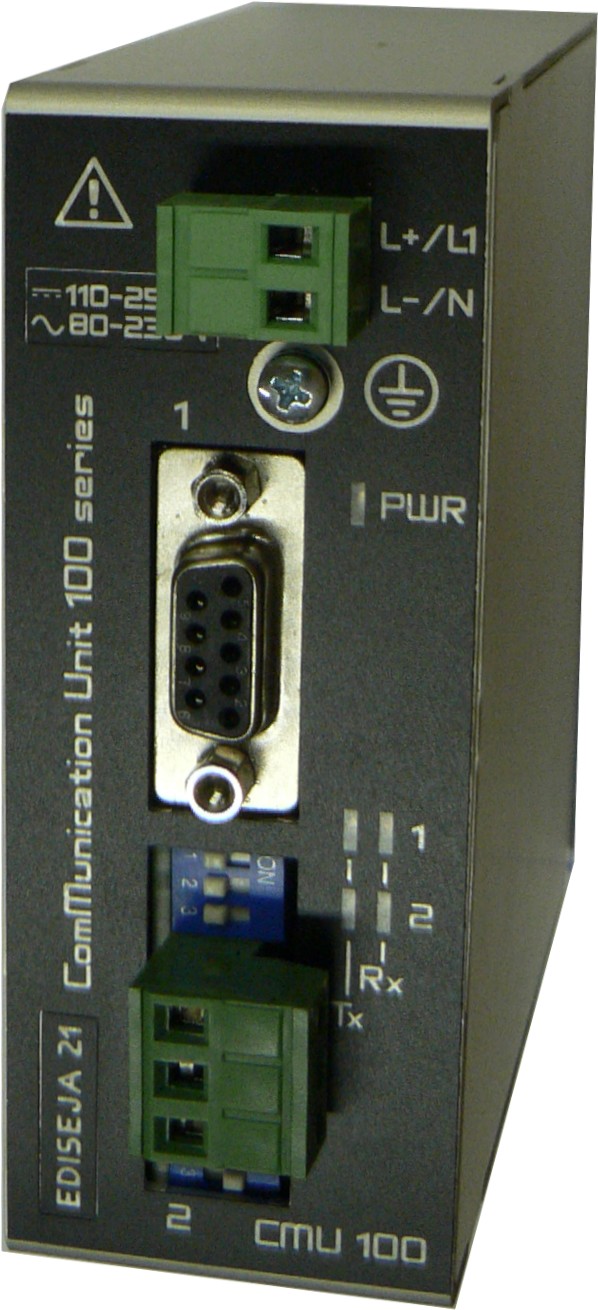

CMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htmCMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htmCMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htmCMUCMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htmCMUCMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htm









Schematic:

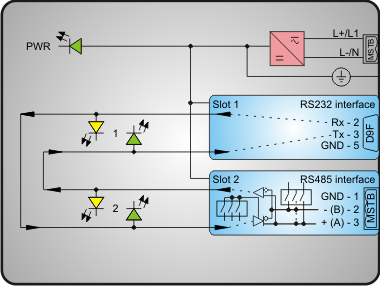

CMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htm











Typical application:

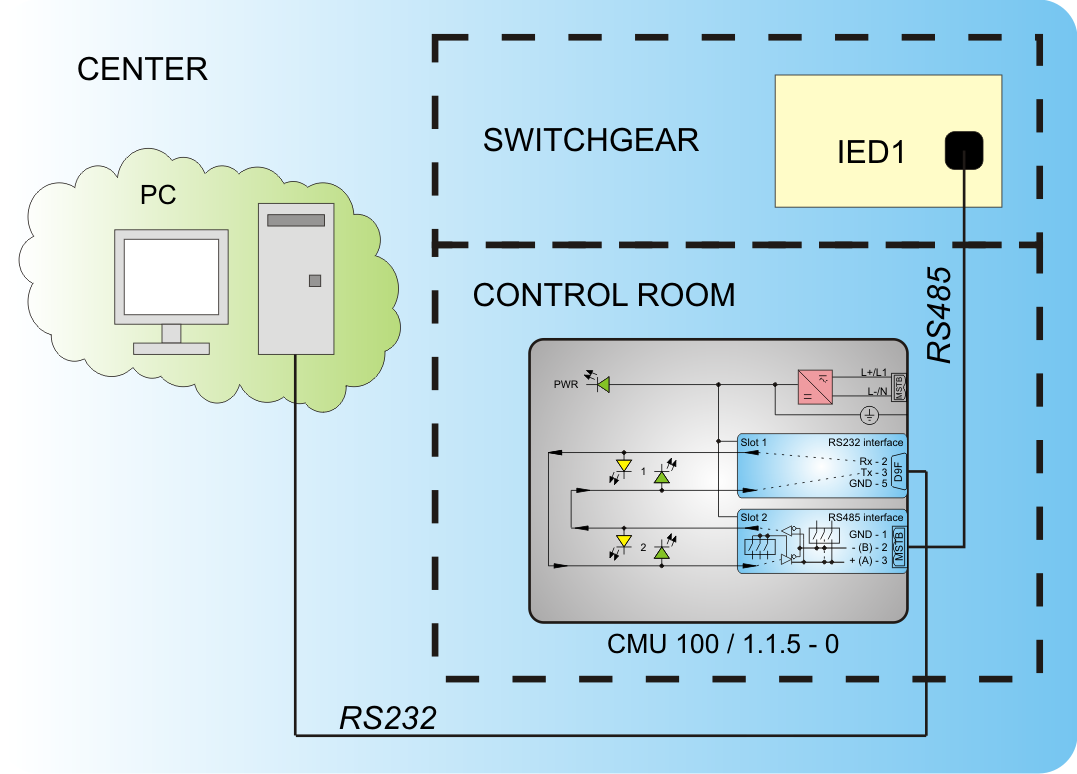

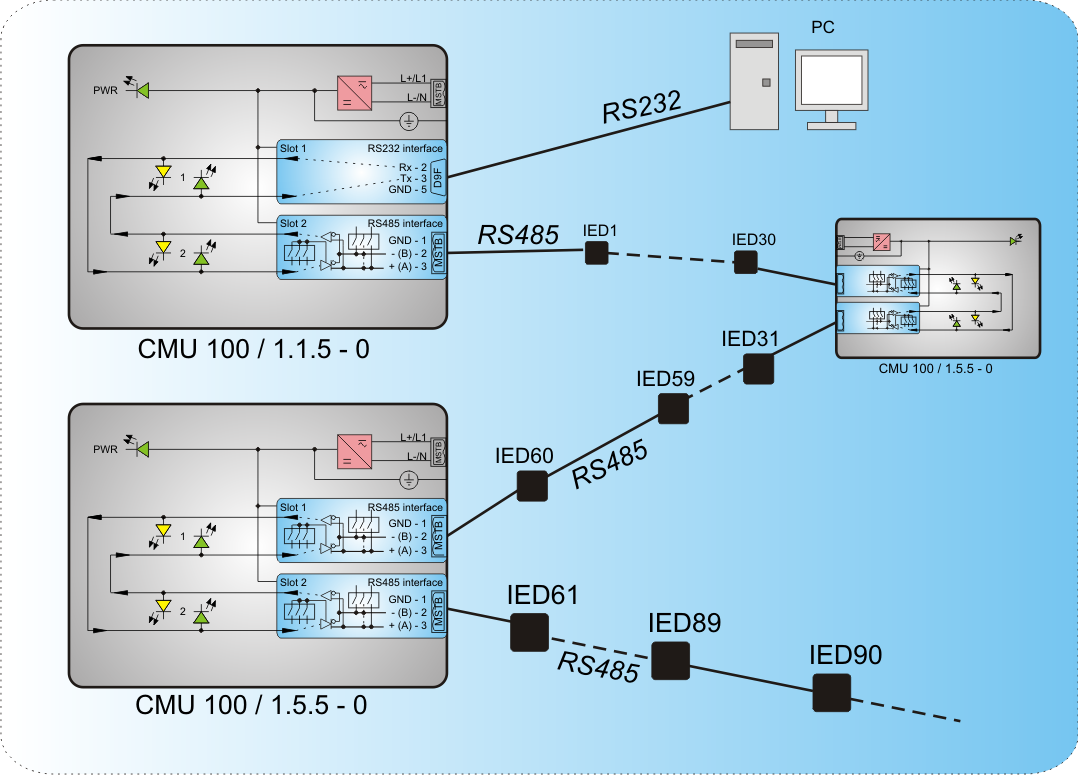

CMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail applicationCMU100-1.1.5 RS232 to RS485 converter, 110V-220VDC, 230 VAC, DIN35 rail application2











Model types:

Port 1
Port 2
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
RS485 (19,2 kbit/s- 115,2 kbit/s)
CMU 100 / 1.1.5 - 0 CMU 100 / 7.1.5 - 0
RS232
RS485 (4,8 kbit/s - 38,4 kbit/s)
CMU 100 / 1.1.M - 0 CMU 100 / 7.1.M - 0
RS232
RS485 (300 bit/s - 2400 bit/s)
CMU 100 / 1.1.L - 0 CMU 100 / 7.1.L - 0



Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering
