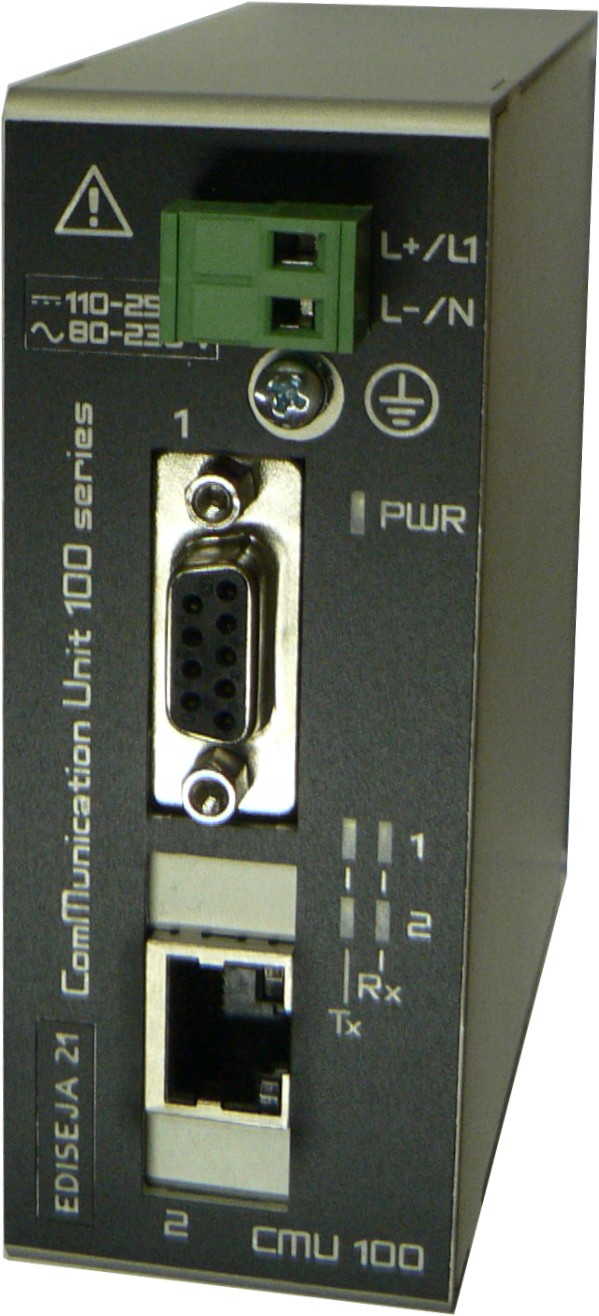

RS232 to 10/100Base-Tx converter - CMU 100 / x.1.9 - 0

CMU100-1.1.9 RS232 to Ethernet 10/100BASE-Tx converter 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21.htm













Description:

CMU 100 / x.1.9 - 0 is 2 port communication converter for RS232 to 10/100Base-Tx communication conversion. Converter power supply is designed for standard substation voltages; 24 V DC, 48 V DC, 110 V DC, 125 V DC, 220 V DC, 230 V AC. CMU 100 has LED indicators for Rx and Tx line on both ports for easier communication traffick. Aluminum housing is intended for DIN 35 rail mounting.



Features:



- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 40 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Communication activity LED indication on both ports



Overview:

iconiconiconiconiconicon

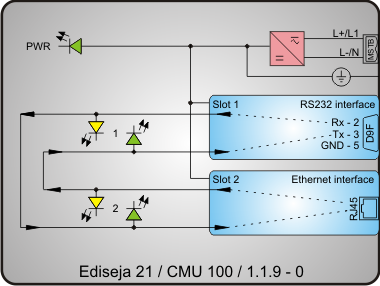

Schematic:

CMU100-1_1_9-0%20RS232 to 10-100Base-Tx converter schematic

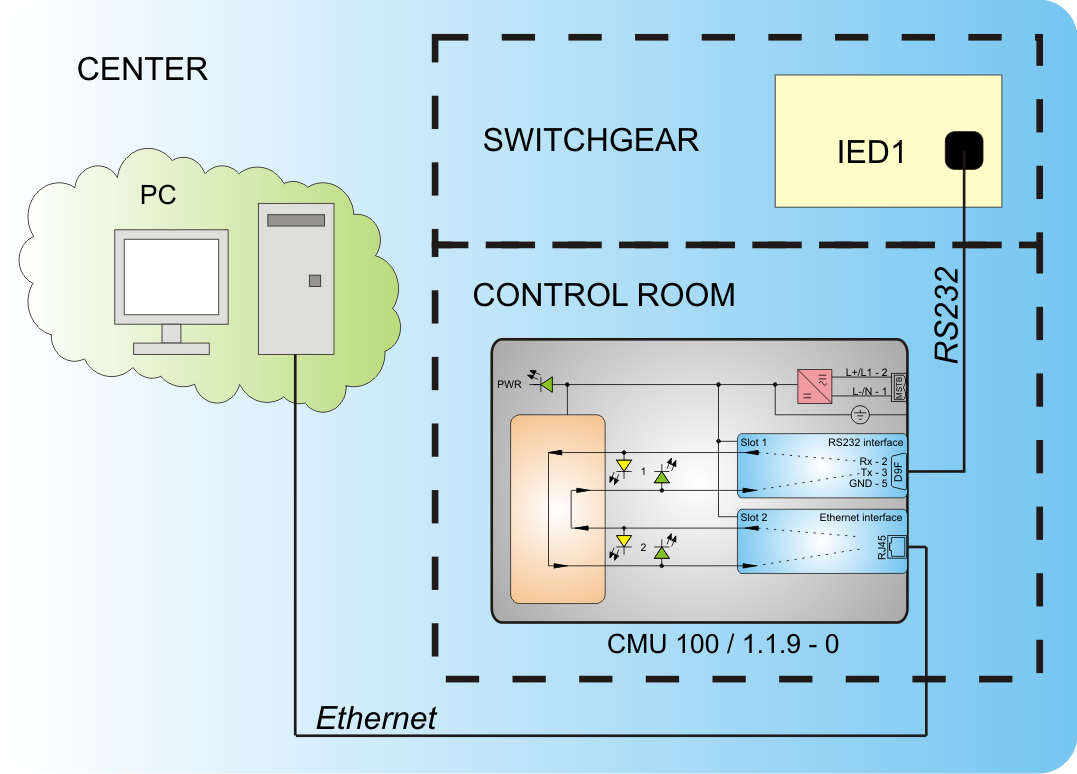

Typical application:

CMU100-1_1_9-0 RS232 to 10-100Base-Tx converter application CMU100-1_1_9-0 RS232 to 10-100Base-Tx converter application











Model types:

Port 1
Port 2
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
10/100Base-Tx
CMU 100 / 1.1.9 - 0
CMU 100 / 7.1.9 - 0





Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering

iconDevice installer

icon

Com Port Redirector
