RS232 to Singlemode Fiber Optic converter

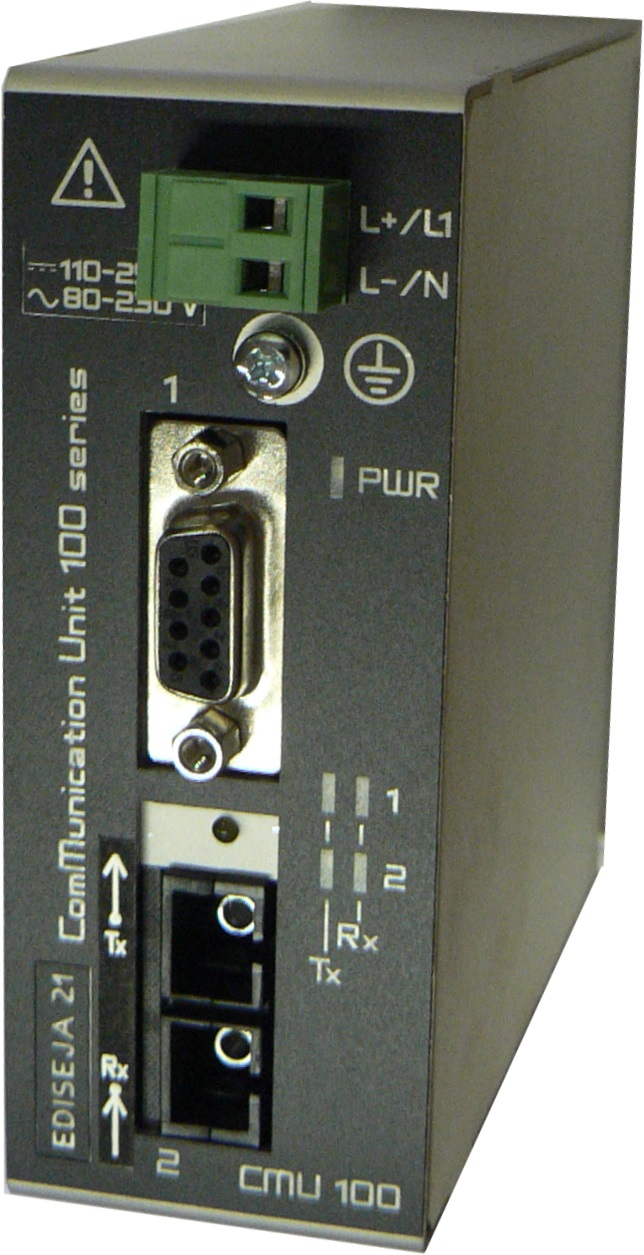

CMU100-1.1.S RS232 to Singlemode Fiber Optic converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21, photo













Description:

This type of CMU 100 device is RS232 to singlemode fiber optic converter. Data is simultaneously converted from RS232 to singlemode fiber optic and vice versa.
Converter has one full duplex, Rx & Tx supported RS232 with DB9F connector. Second interface is full duplex 1310 nm wave lenght singlemode fiber with up to 20 km distance range with SC, FC or ST connector. Device allows data speed up to 115,2 kbits/s.
Converter has LED indication for power and LED indication for Rx and Tx lines for each interface.
Three types of power supplies allow connection to all common station batteries: 24 V DC, 48 V-60 V DC, 110 V-220 V DC voltage. Additionaly it can be also connected to standard 230 V AC voltage.
Housing is made from Aluminum and is intended for standard DIN35 rail.
This device is intended for use in cubicles and cabinets in all kinds of power production, transmission and distribution stations. It requires no maintenace. All normaly used connectors, switches and light indicators are accessed at the front side of the device.





Features:

- Integrated power supply, so no additional power supply adaptor needed
- Wide power supply input voltage for standard station batteries supply 110 V-220 V DC, 230 V AC or 48 V-60 V DC or 24 VDC
- Enclosure size 40 mm(W) x 105 mm(H) x 111 mm(D)
- Aluminum housing, standard DIN 35 rail mount
- Communication activity LED indication on each port
- Communication speed up to 115,2 kbit/s
- 1,5 km distance with multimode and 20 km with singlemode fiber







Overview:

icon RS232icon SMicon PSicon adapicon DIMicon DINicon PC









Schematic:

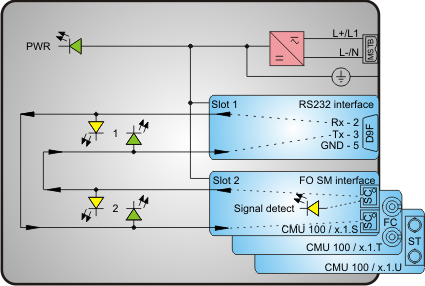

CMU100-1.1.S RS232 to Singlemode Fiber Optic converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21, schematic











Typical application:

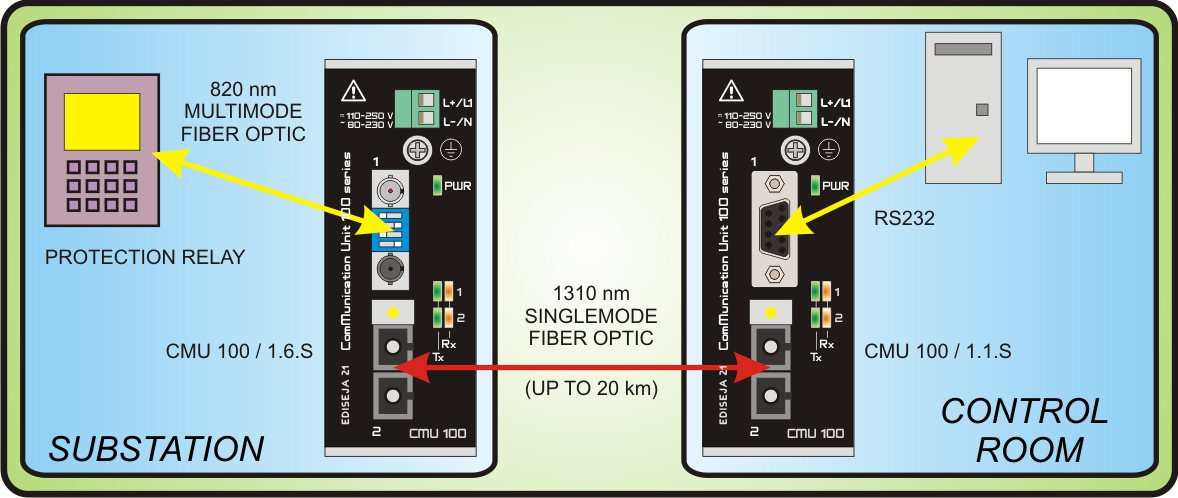

CMU100-1.1.S RS232 to Singlemode Fiber Optic converter, 110V-220VDC, 230 VAC, DIN35 rail, Ediseja 21, application









Model types:

Port 1
Port 2
110 V-220 V DC, 230 V AC
48 V-60 V DC
24 V DC
RS232
Singlemode Fiber Optic
(SC)
CMU 100 / 1.1.S - 0
CMU 100 / 7.1.S - 0
CMU 100 / 3.1.S - 0
(FC)
CMU 100 / 1.1.T - 0
CMU 100 / 7.1.T - 0
CMU 100 / 3.1.T - 0
(ST)
CMU 100 / 1.1.U - 0
CMU 100 / 7.1.U - 0
CMU 100 / 3.1.U - 0





Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering
