100Base-Tx to 100Base-Fx converter - CMU 100 / x.E.F - 0 (2 km) & CMU 100 / x.E.G - 0 (20 km)

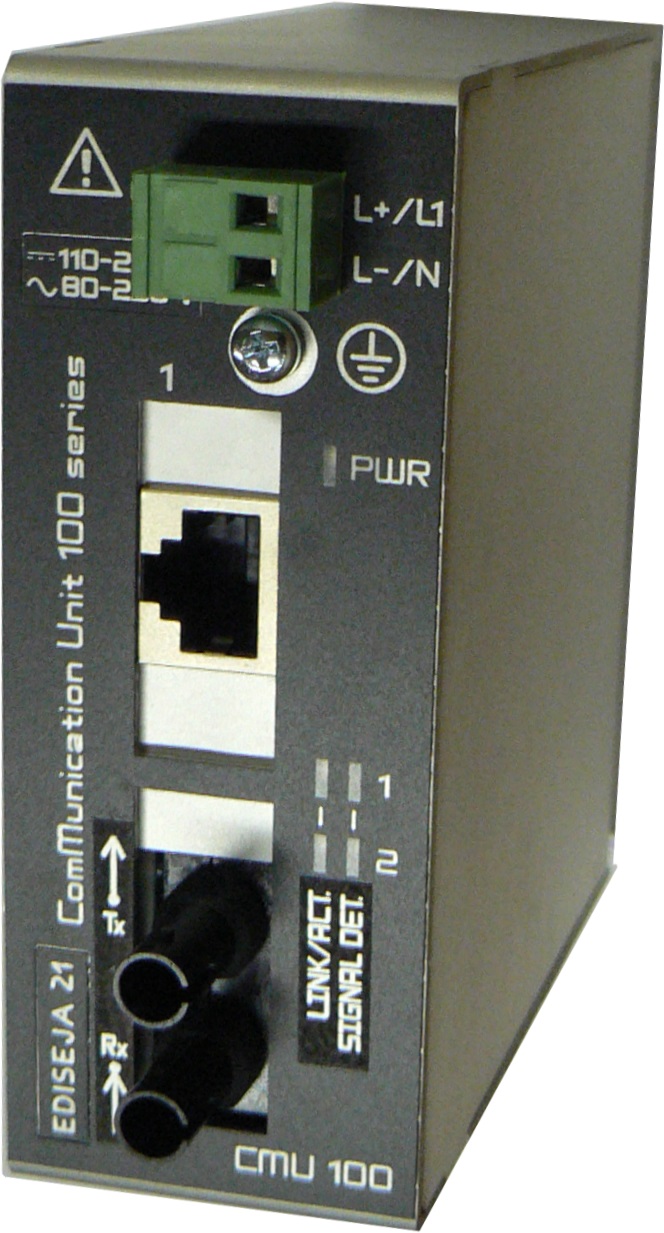

100Base-Tx to 100Base-Fx converter 110-220VDC 230 VAC DIN35 CMU100-1.E.F Ediseja 21 photo













Features:



- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 40 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Link/activity LED indication on both ports

- Signal detect LED indication on fiber optic port

- 1300 nm fiber optic up to 2 km (CMU 100 / x.E.F), 1310 nm fiber optic up to 20 km (CMU 100 / x.E.G)

- Auto MDI-MDIX (no need for crossover cables)

- Pure converter mode data forwarding with extreme low latency

- Suitable for protection relay IEC 61850 protocol communication



Overview:

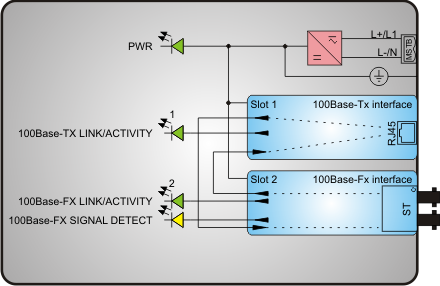

Schematic:

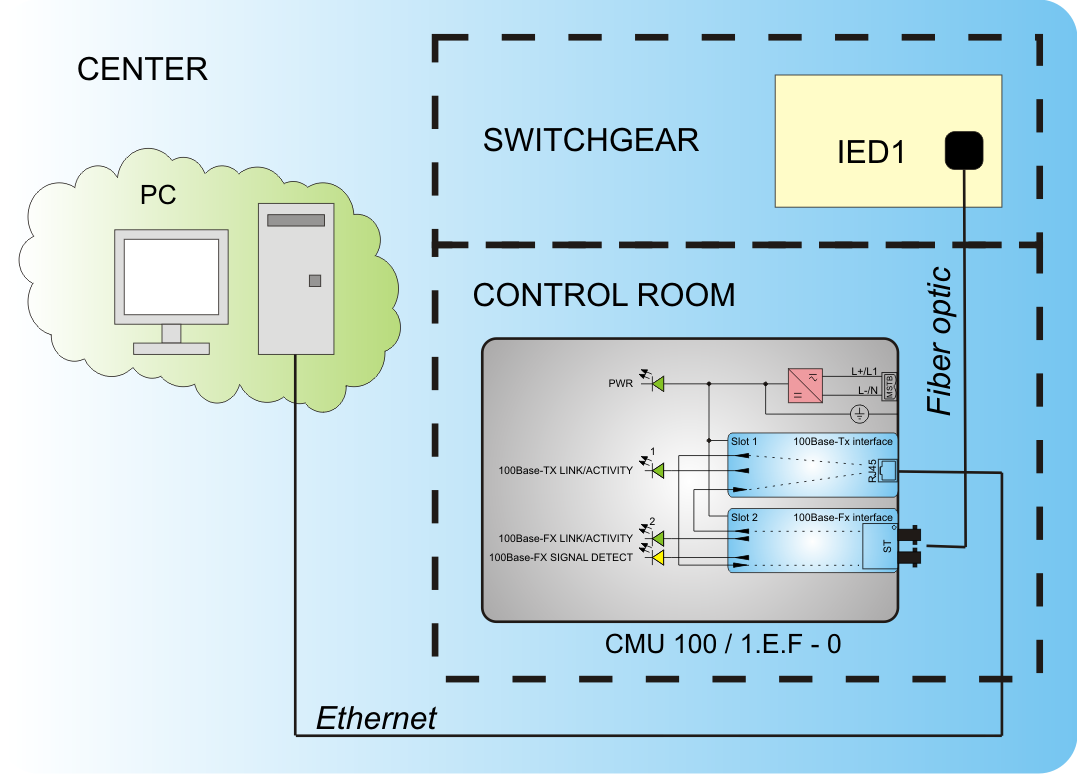

Typical application:











Model types:

Port 1
Port 2
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
10/100Base-Tx
10/100Base-Fx (2 km)
CMU 100 / 1.E.F - 0
CMU 100 / 7.E.F - 0
10/100Base-Tx
10/100Base-Fx (20 km)
CMU 100 / 1.E.G - 0
CMU 100 / 7.E.G - 0



Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering
