Communication devices - CMU 100 series; 8 port converters & star couplers - RS232 to 7x RS232

Photo: CMU

Features:

- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 85 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Tx and Rx Communication activity LED indication on all ports


Overview:

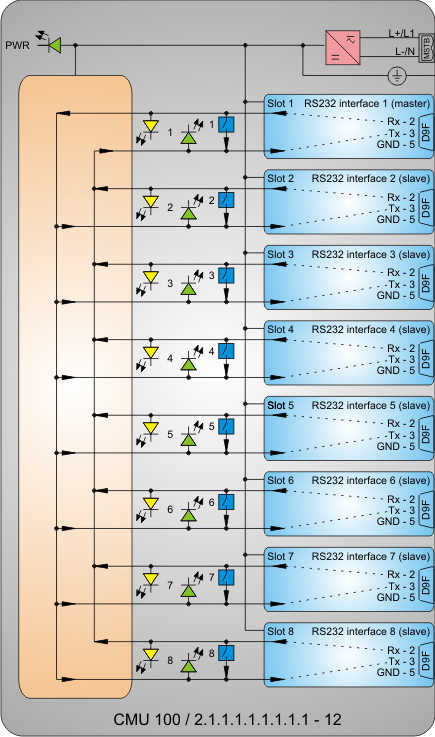

Schematic:

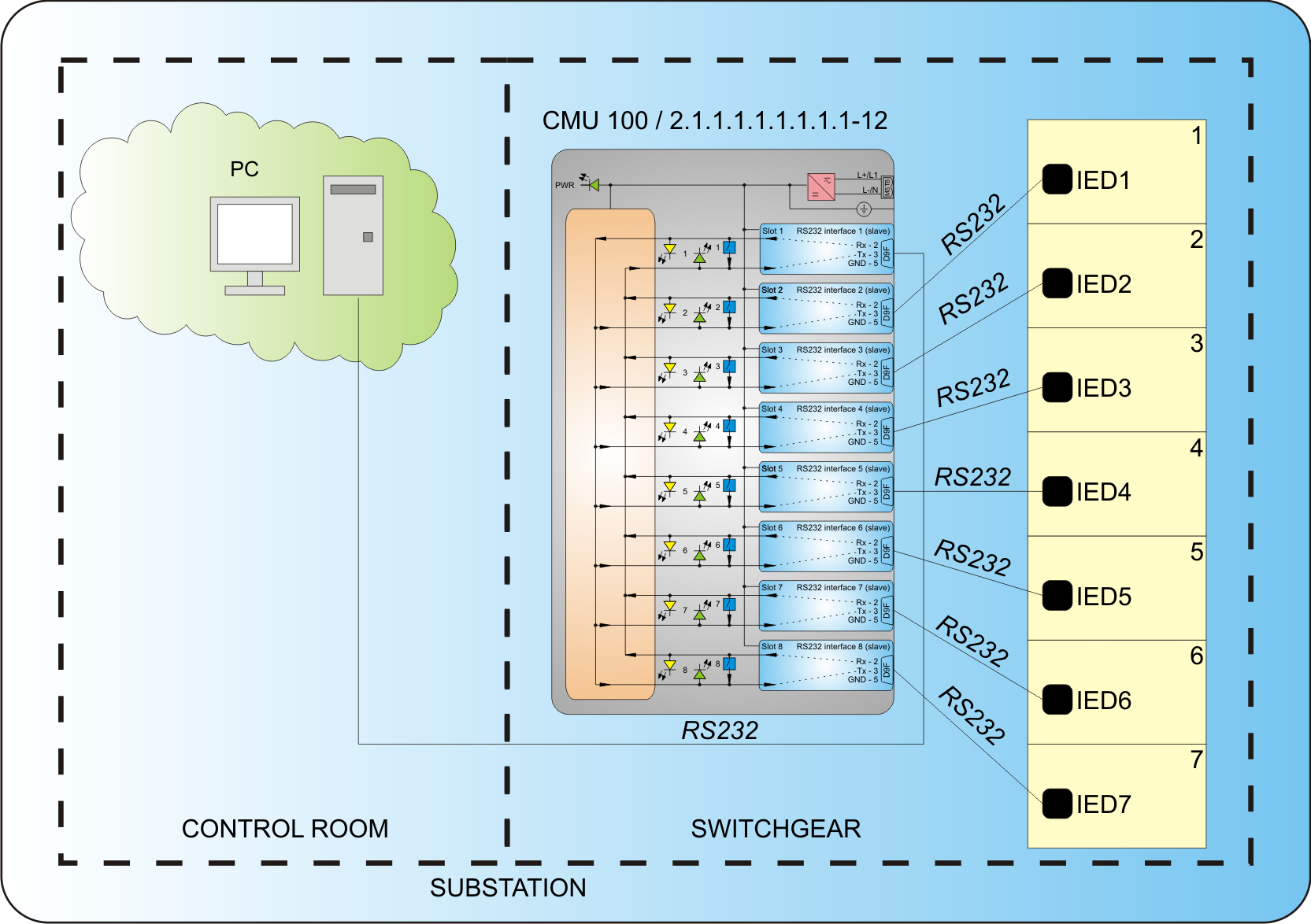

Typical application:

Model types:
Port 1
Port 2-8
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
4x RS232
CMU 100 / 2.1.1.1.1.1 -12 CMU 100 / 8.1.1.1.1.1 -12
RS232
5x RS232
CMU 100 / 2.1.1.1.1.1.1 -12 CMU 100 / 8.1.1.1.1.1.1 -12
RS232
6x RS232
CMU 100 / 2.1.1.1.1.1.1.1 -12 CMU 100 / 8.1.1.1.1.1.1.1 -12
RS232
7x RS232
CMU 100 / 2.1.1.1.1.1.1.1.1 -12 CMU 100 / 8.1.1.1.1.1.1.1.1 -12

Downloads:

acrobatProduct brief

acrobatUser manual

acrobatOrdering
