RS232 to 2-3x RS232 star coupler - CMU 100 / x.1.1.1.1 - 12

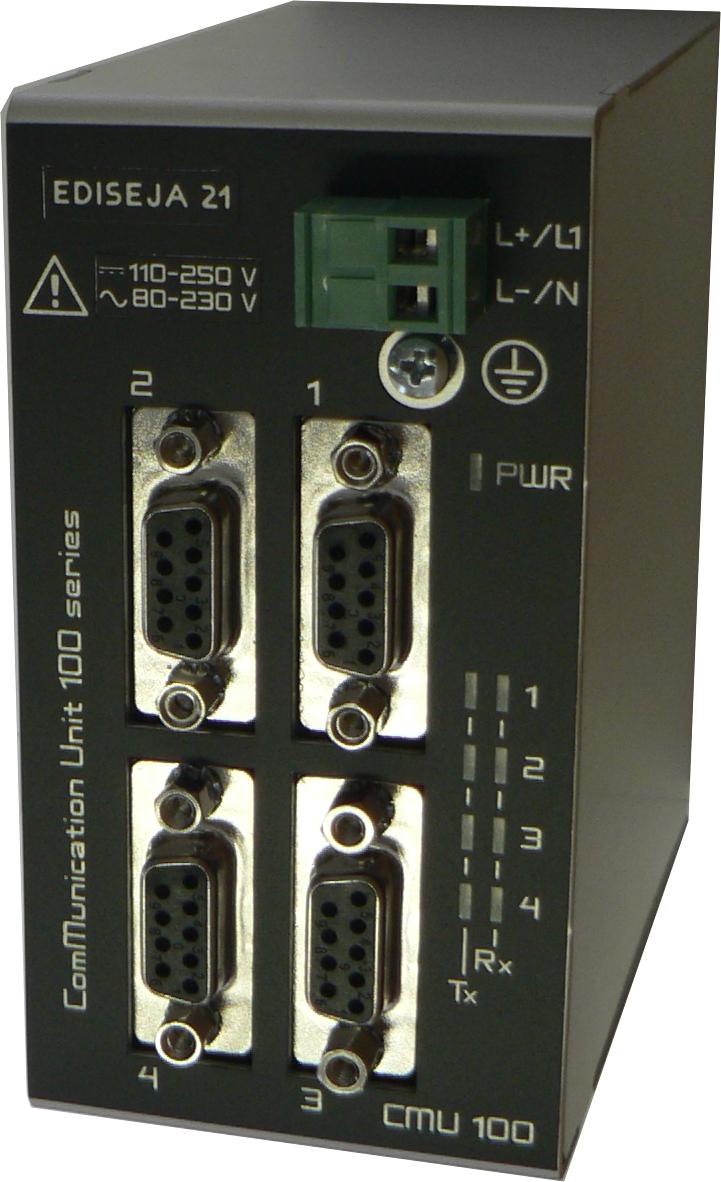

CMU100-2_1_1_1_1-x RS232 to 3x RS232 star coupler photo













Features:



- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 55 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Communication activity LED indication on all ports





Overview:

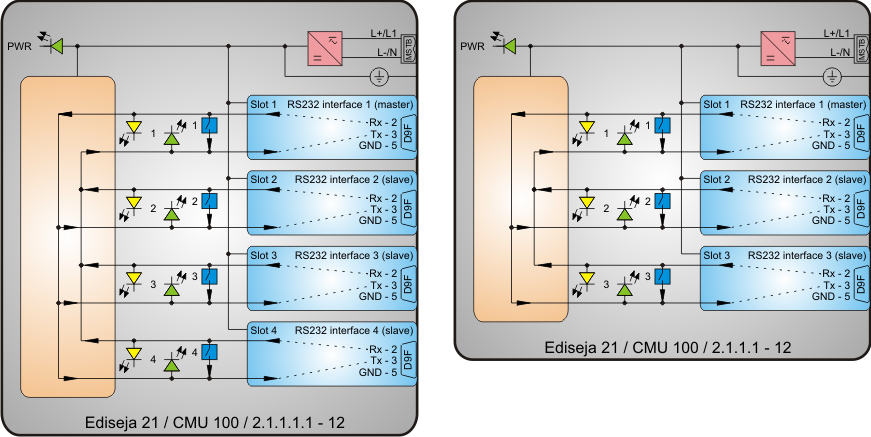

Schematic:

CMU100-2_1_1_1_1-12 RS232 to 2-3x RS232 star coupler schematic

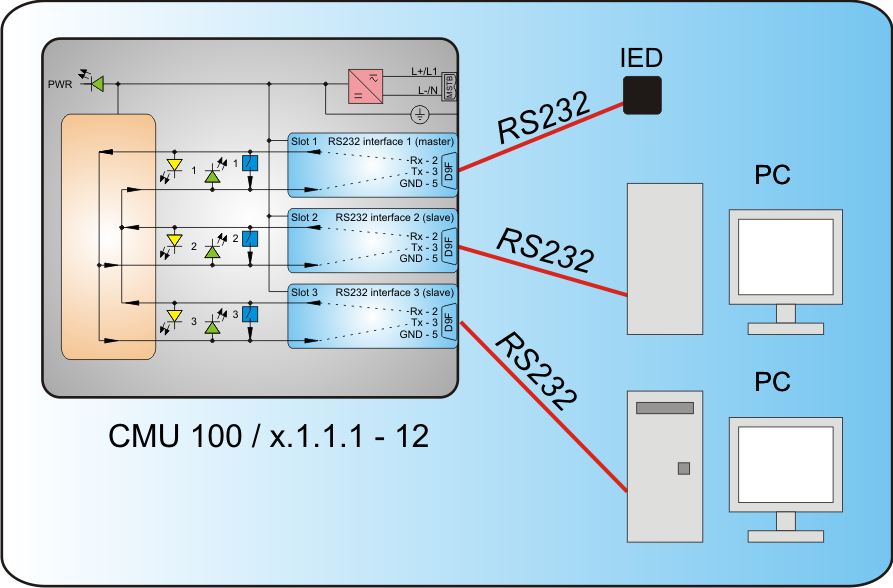

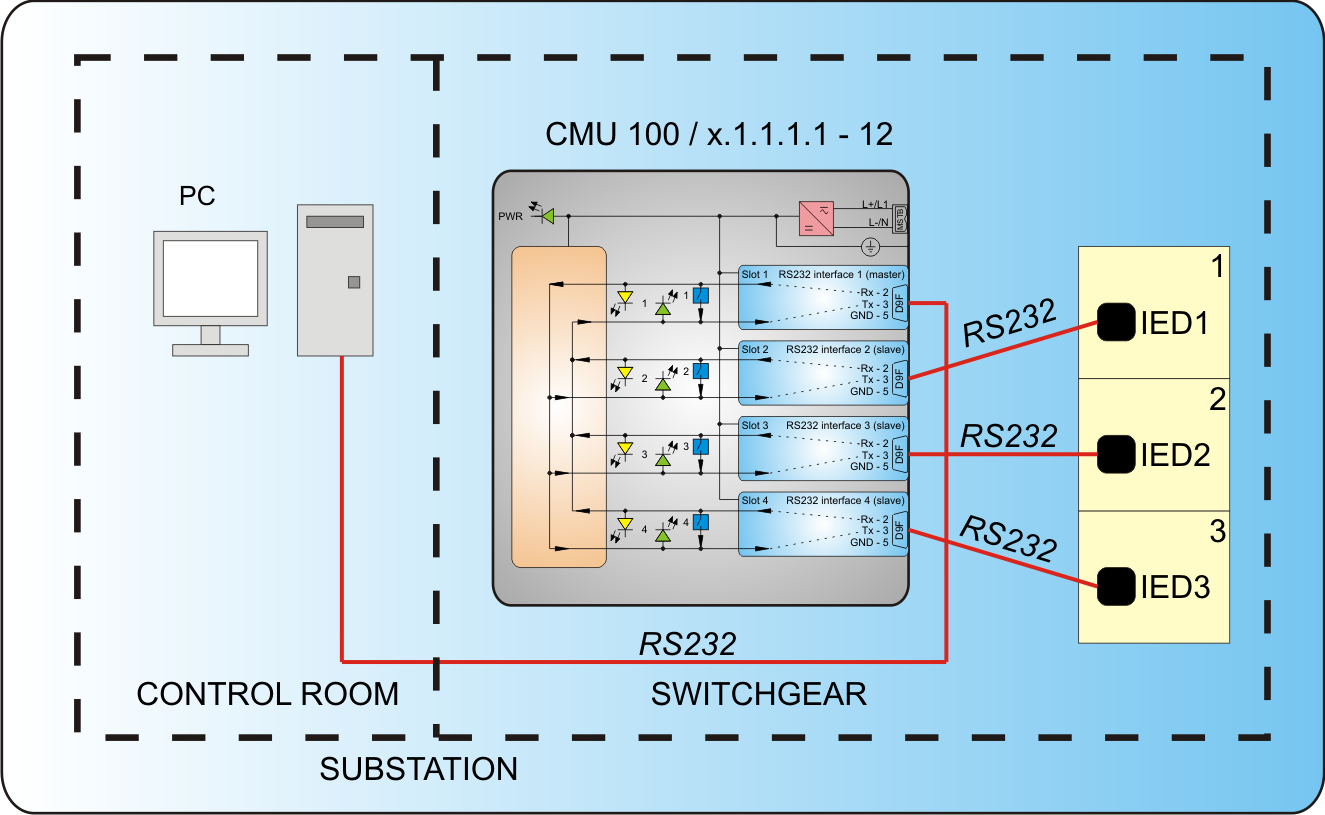

Typical application:

CMU100-2_1_1_1_1-12 RS232 to 2-3x RS232 star coupler applicationCMU100-2_1_1_1-12 RS232 to 2x RS232 star coupler application













Model types:

Port 1
Port 2
Port 3
Port 4
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
RS232
RS232
/
CMU 100 / 2.1.1.1 - 12
CMU 100 / 8.1.1.1 - 12
RS232
RS232
RS232
RS232
CMU 100 / 2.1.1.1.1 - 12
CMU 100 / 8.1.1.1.1 - 12





Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering
