Features:
- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)
- Power supply integrated, so no additional power supply adaptor needed
- Enclosure size 55 mm(W) x 105 mm(H) x 111 mm(D)
- Standard DIN 35 rail mount
- Communication activity LED indication on all ports

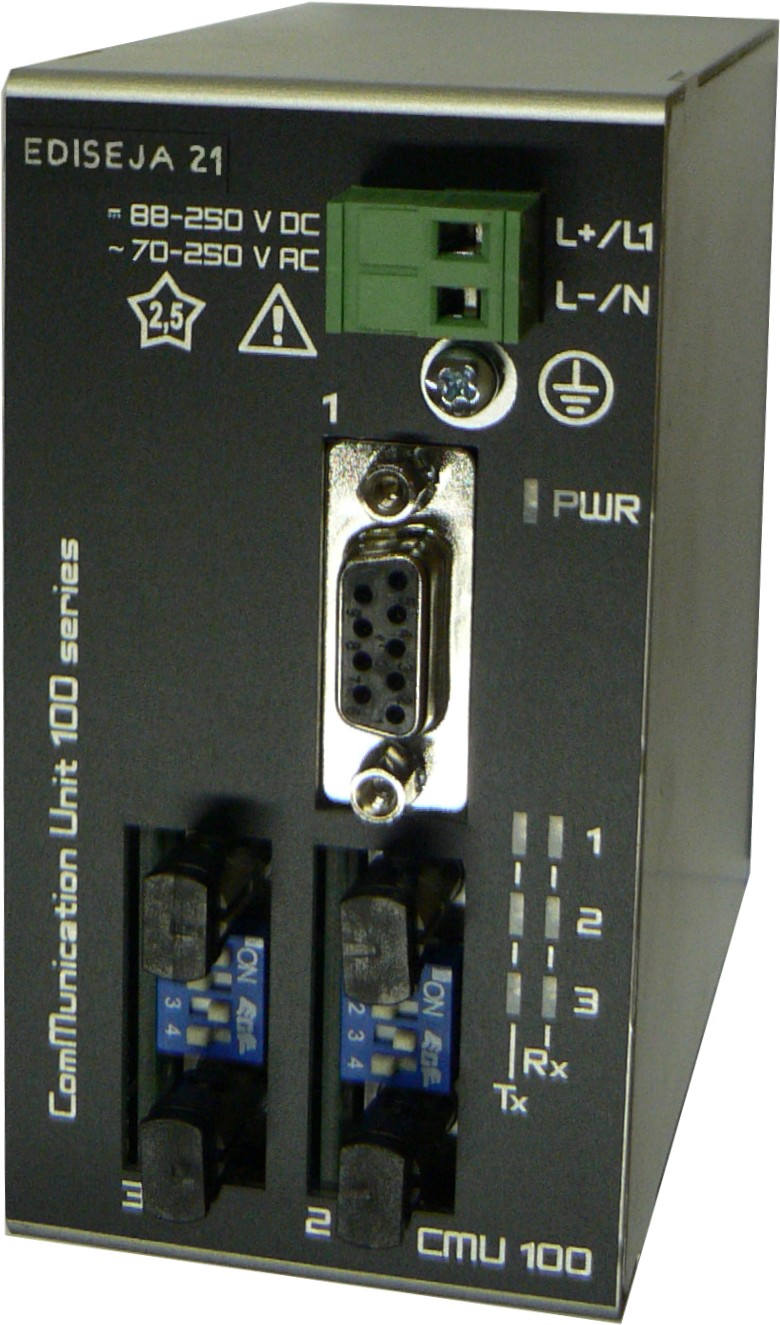

Overview:

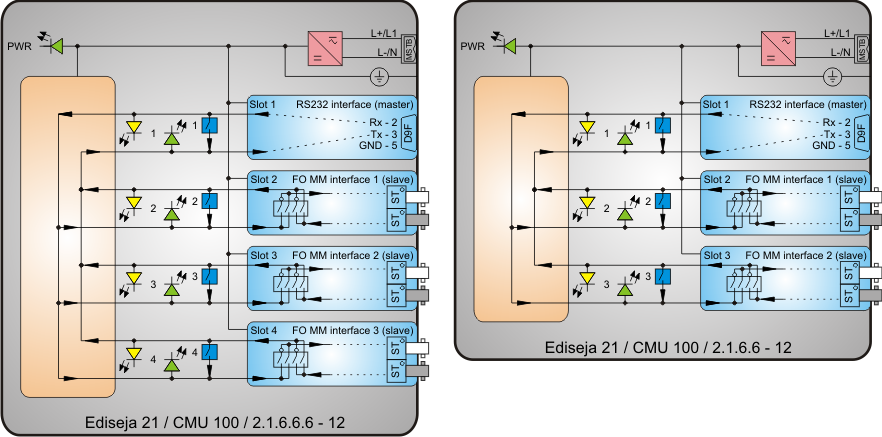

Schematic:

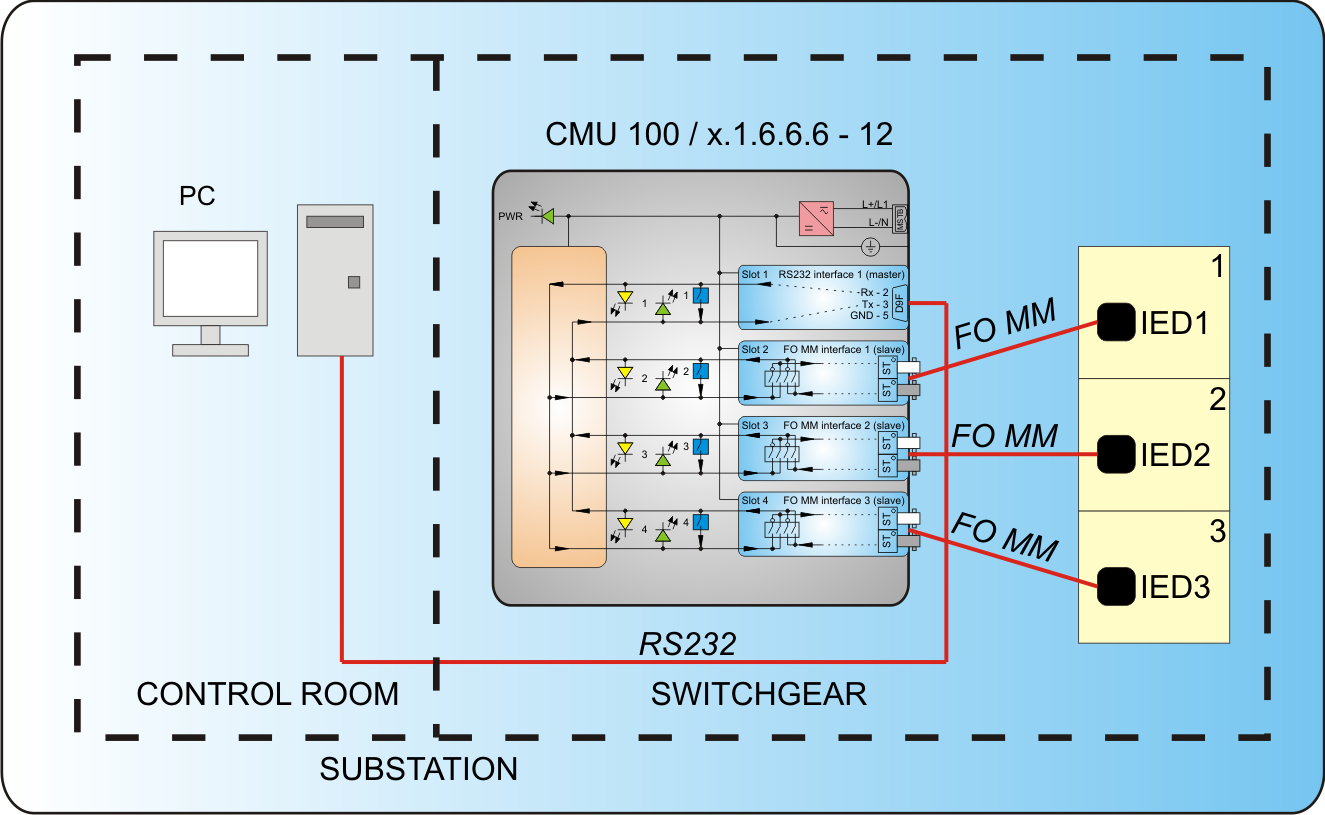

Typical application:
Model types:
Port 1 |
Port 2 |
Port 3 |
Port 4 |
DC 110 V-250 V, AC 230 V |
DC 48 V-60 V, AC 48 V |
RS232 |
FO MM |
FO MM |
/ |
CMU 100 / 2.1.6.6 - 12 |
CMU 100 / 8.1.6.6 - 12 |
RS232 |
FO MM |
FO MM |
FO MM |
CMU 100 / 2.1.6.6.6 - 12 |
CMU 100 / 8.1.6.6.6 - 12 |
