RS232 to 4-7x Multimode Fiber Optic converter & star coupler - CMU 100 / x.1.6.6.6.6.6.6.6 - 12 & RS232 & Multimode Fiber Optic to 3-6x Multimode Fiber Optic converter & star coupler - CMU 100 / x.1.6.6.6.6.6.6.6 - 5

CMU

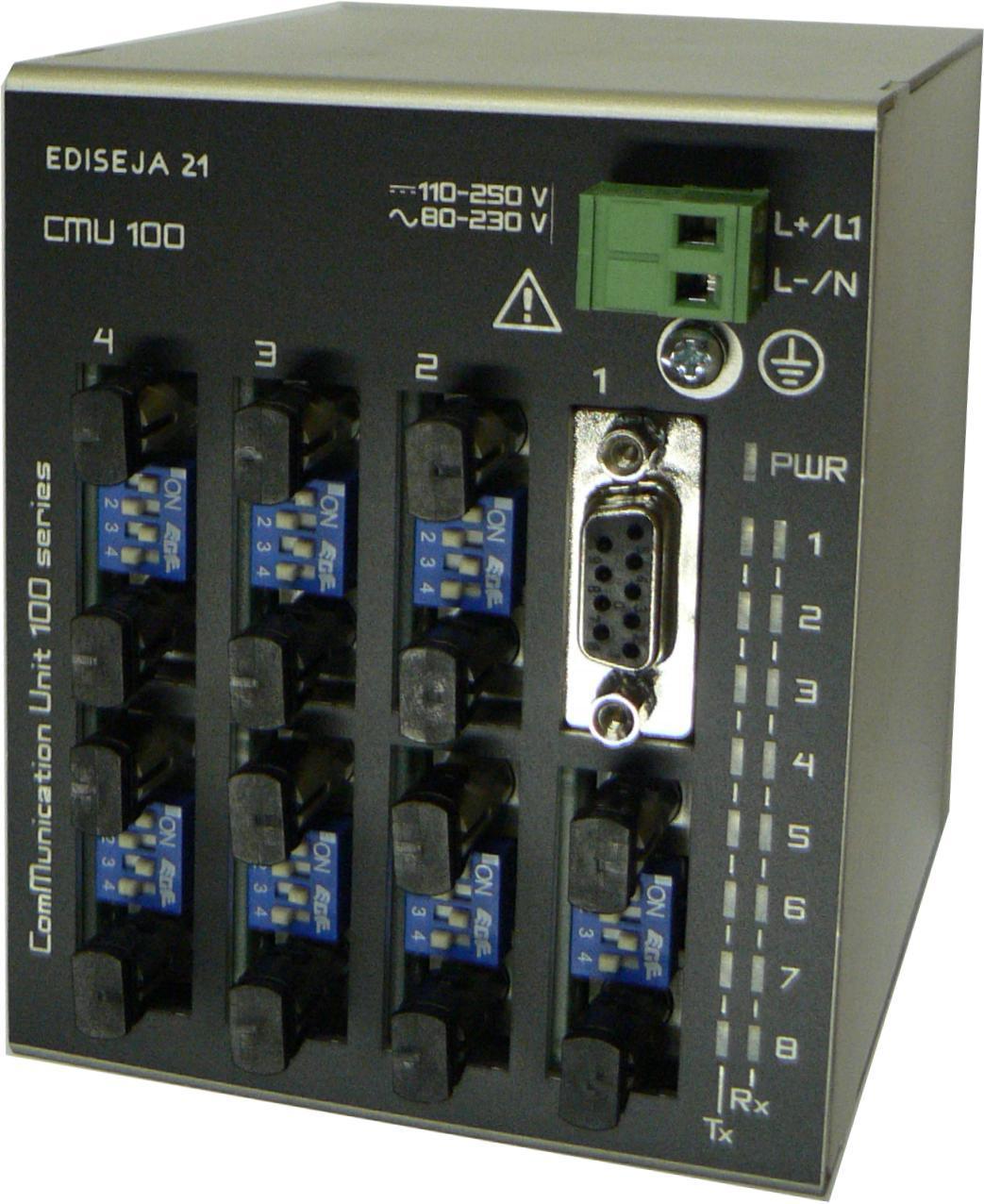

Features:

- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 85 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Tx and Rx Communication activity LED indication on all ports





Overview:

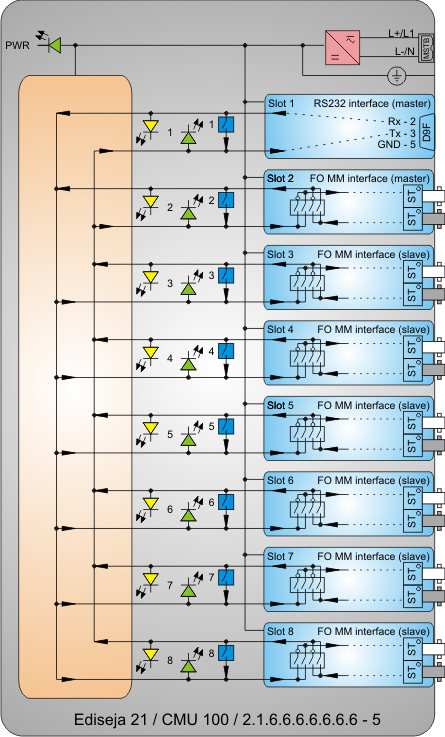

Schematic:



















1x master / 7x slaves 2x masters / 6x slaves

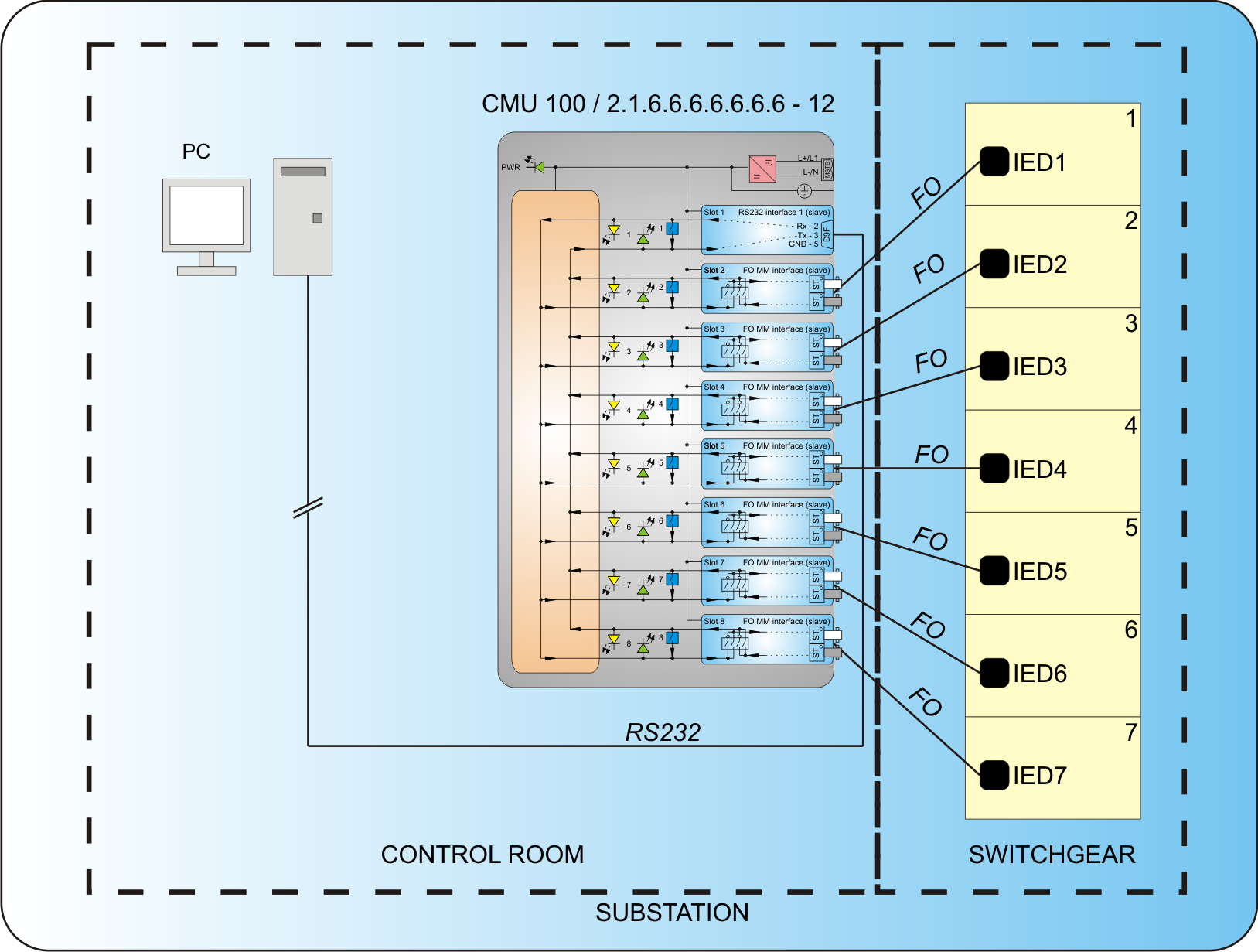

Typical application:

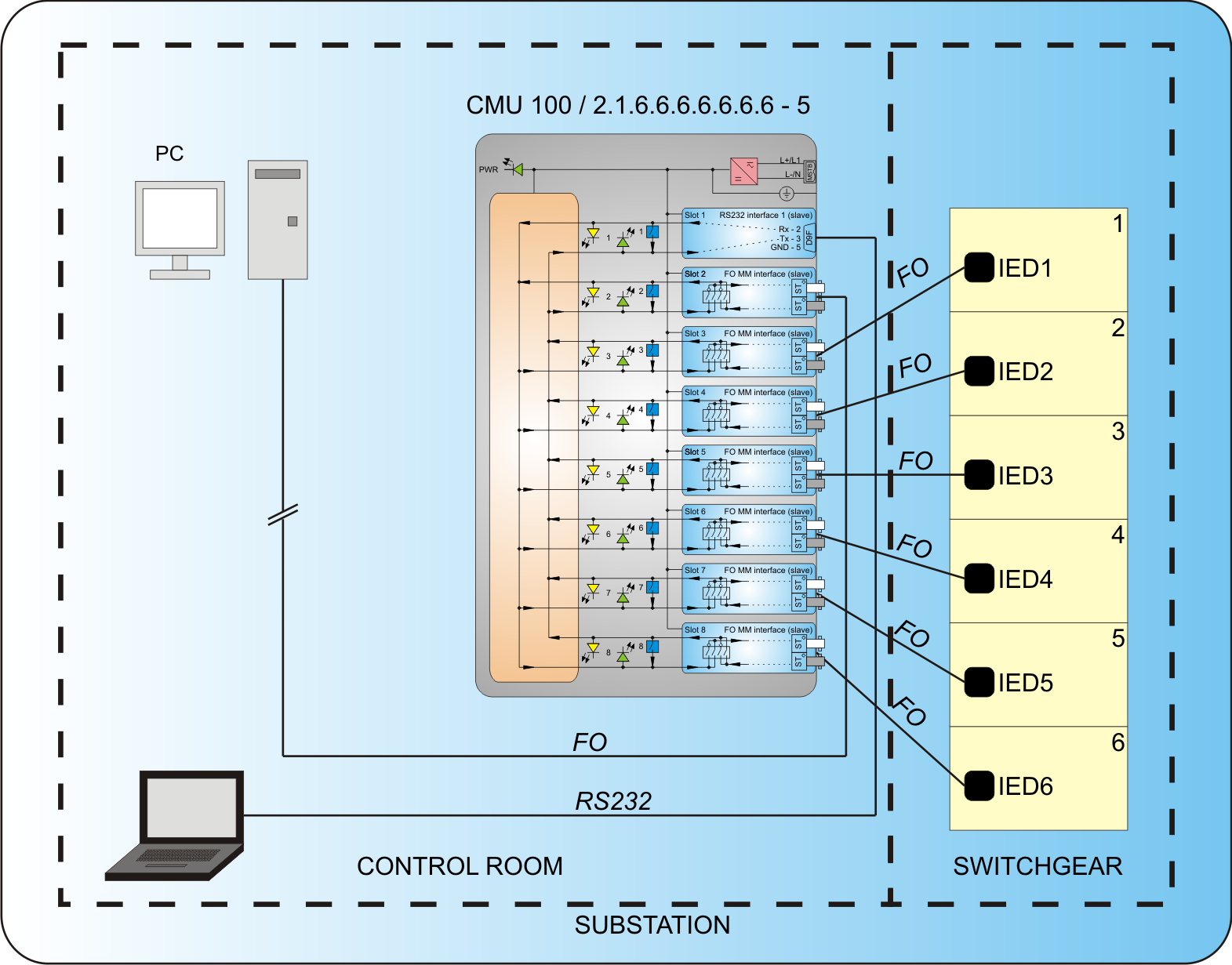

1x master / 7x slaves 2x masters / 6x slaves





1x master (RS232) up to 7x slaves (fiber optic) model types:

Port 1 (M)
Port 2-8 (S)
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
4x MM FO
CMU 100 / 2.1.6.6.6.6 -12 CMU 100 / 8.1.6.6.6.6 -12
5x MM FO
CMU 100 / 2.1.6.6.6.6.6 -12 CMU 100 / 8.1.6.6.6.6.6 -12
6x MM FO
CMU 100 / 2.1.6.6.6.6.6.6 -12 CMU 100 / 8.1.6.6.6.6.6.6 -12
7x MM FO
CMU 100 / 2.1.6.6.6.6.6.6.6 -12 CMU 100 / 8.1.6.6.6.6.6.6.6 -12





Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering





2x master (RS232 & fiber optic) up to 6x slaves (fiber optic) model types:

Port 1 (M)
Port 2 (M)
Port 3-8 (S)
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
MM FO
3x MM FO
CMU 100 / 2.1.6.6.6.6 -5 CMU 100 / 8.1.6.6.6.6 -5
4x MM FO
CMU 100 / 2.1.6.6.6.6.6 -5 CMU 100 / 8.1.6.6.6.6.6 -5
5x MM FO
CMU 100 / 2.1.6.6.6.6.6.6 -5 CMU 100 / 8.1.6.6.6.6.6.6 -5
6x MM FO
CMU 100 / 2.1.6.6.6.6.6.6.6 -5 CMU 100 / 8.1.6.6.6.6.6.6.6 -5



Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering
