RS232, Multimode & Versatile Link FO to 2-5x Versatile Link FO converter& star coupler - CMU 100 / x.1.6.P.P.P.P.P.P - 9

RS232, Multimode (820 nm) & Versatile Link (650 nm) Fiber Optic to 5x Versatile link Fiber optic 110-220VDC 230VAC CMU 100 / 2.1.6.P.P.P.P.P.P -9 Ediseja 21













Features:

- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 85 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Tx and Rx Communication activity LED indication on all ports



Overview:









Schematic:

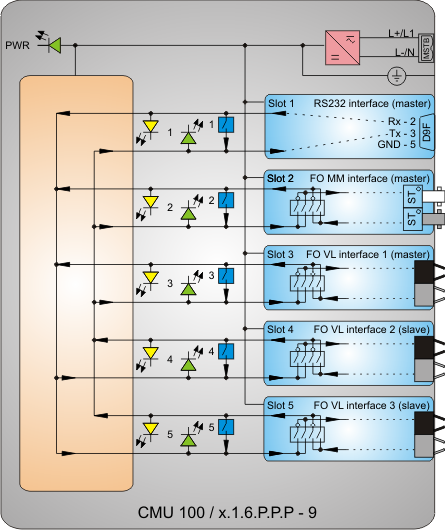

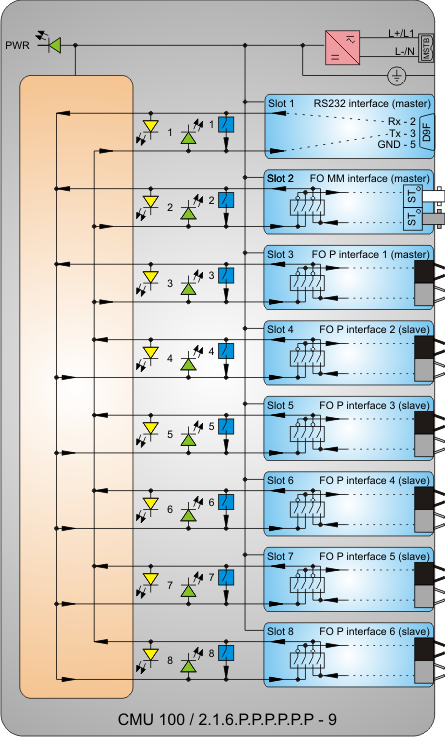

RS232, Multimode (820 nm) & Versatile Link (650 nm) Fiber Optic to 5x Versatile link Fiber optic 110-220VDC 230VAC CMU 100 / 2.1.6.P.P.P.P.P.P -9 schematic Ediseja 21RS232, Multimode (820 nm) & Versatile Link (650 nm) Fiber Optic to 2x Versatile link Fiber optic 110-220VDC 230VAC CMU 100 / 2.1.6.P.P.P.P.P.P -9 schematic Ediseja 21



















Typical application:

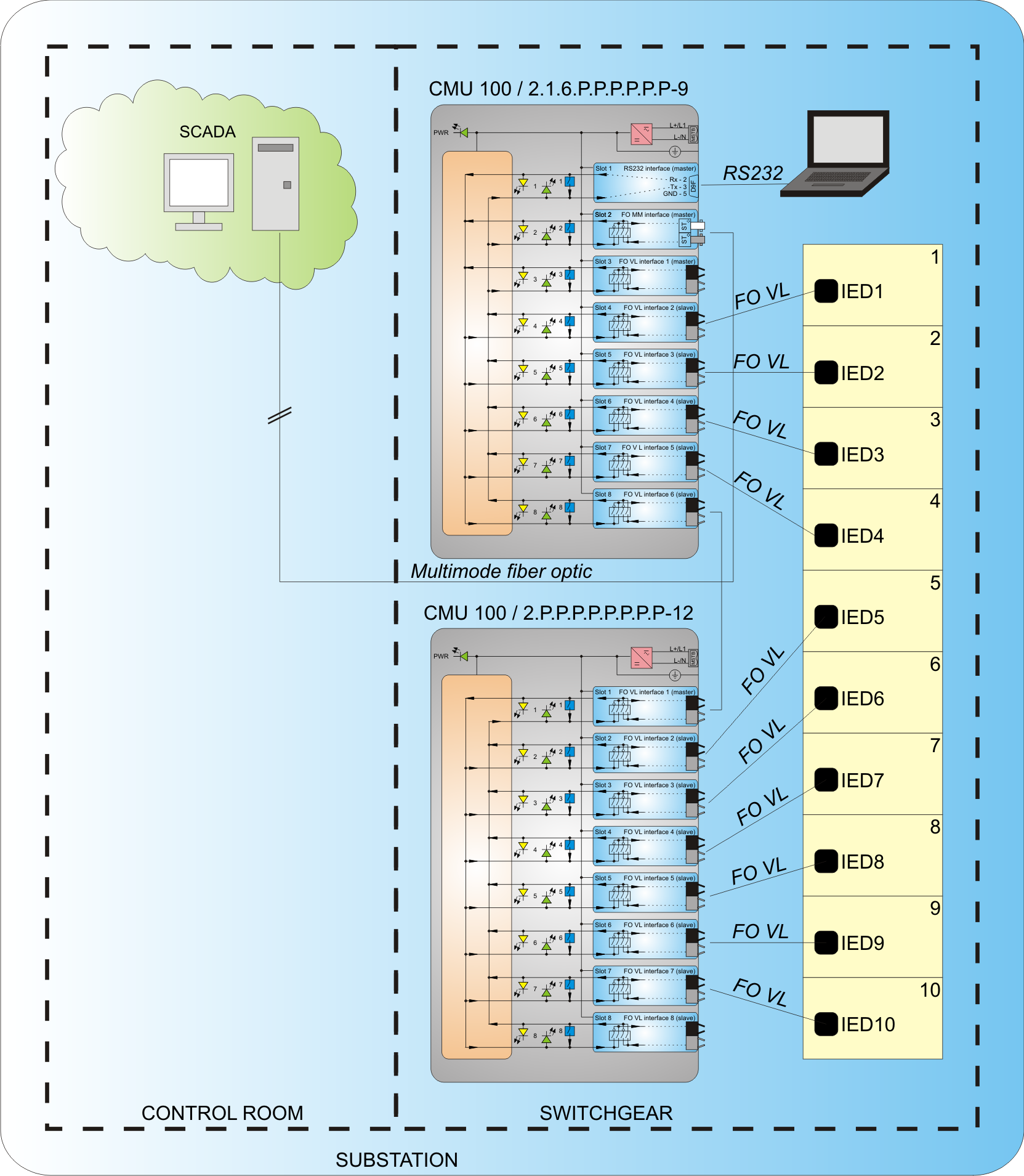

RS232, Multimode (820 nm) & Versatile Link (650 nm) Fiber Optic to 5x Versatile link Fiber optic 110-220VDC 230VAC CMU 100 / 2.1.6.P.P.P.P.P.P -9 application Ediseja 21

















Model types:

Port 1
Port 2
Port 3
Port 4-8
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS232
MM FO
VL FO
5x VL FO
CMU 100 / 2.1.6.P.P.P.P.P.P - 9
CMU 100 / 8.1.6.P.P.P.P.P.P - 9
RS232
MM FO
VL FO
4x VL FO
CMU 100 / 2.1.6.P.P.P.P.P - 9
CMU 100 / 8.1.6.P.P.P.P.P - 9
RS232
MM FO
VL FO
3x VL FO
CMU 100 / 2.1.6.P.P.P.P - 9
CMU 100 / 8.1.6.P.P.P.P - 9
RS232
MM FO
VL FO
2x VL FO
CMU 100 / 2.1.6.P.P.P - 9
CMU 100 / 8.1.6.P.P.P - 9



Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering
