RS485 to 4-7x RS232 port converter & star coupler - CMU 100 / x.5.1.1.1.1.1.1.1.1 - 12

CMU













Features:

- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 85 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Tx and Rx Communication activity LED indication on all ports





Overview:

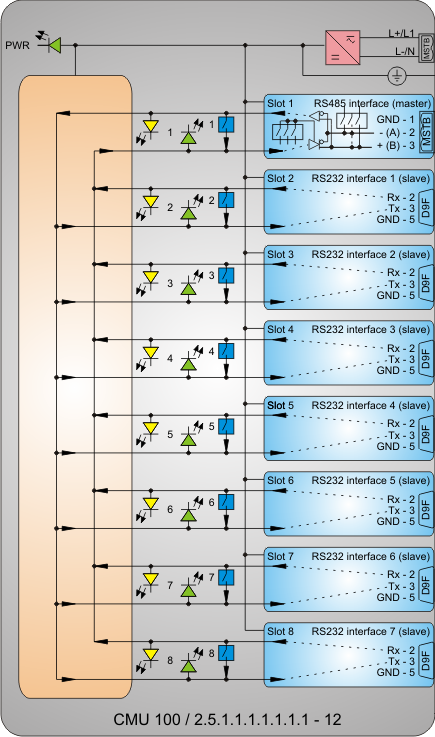

Schematic:

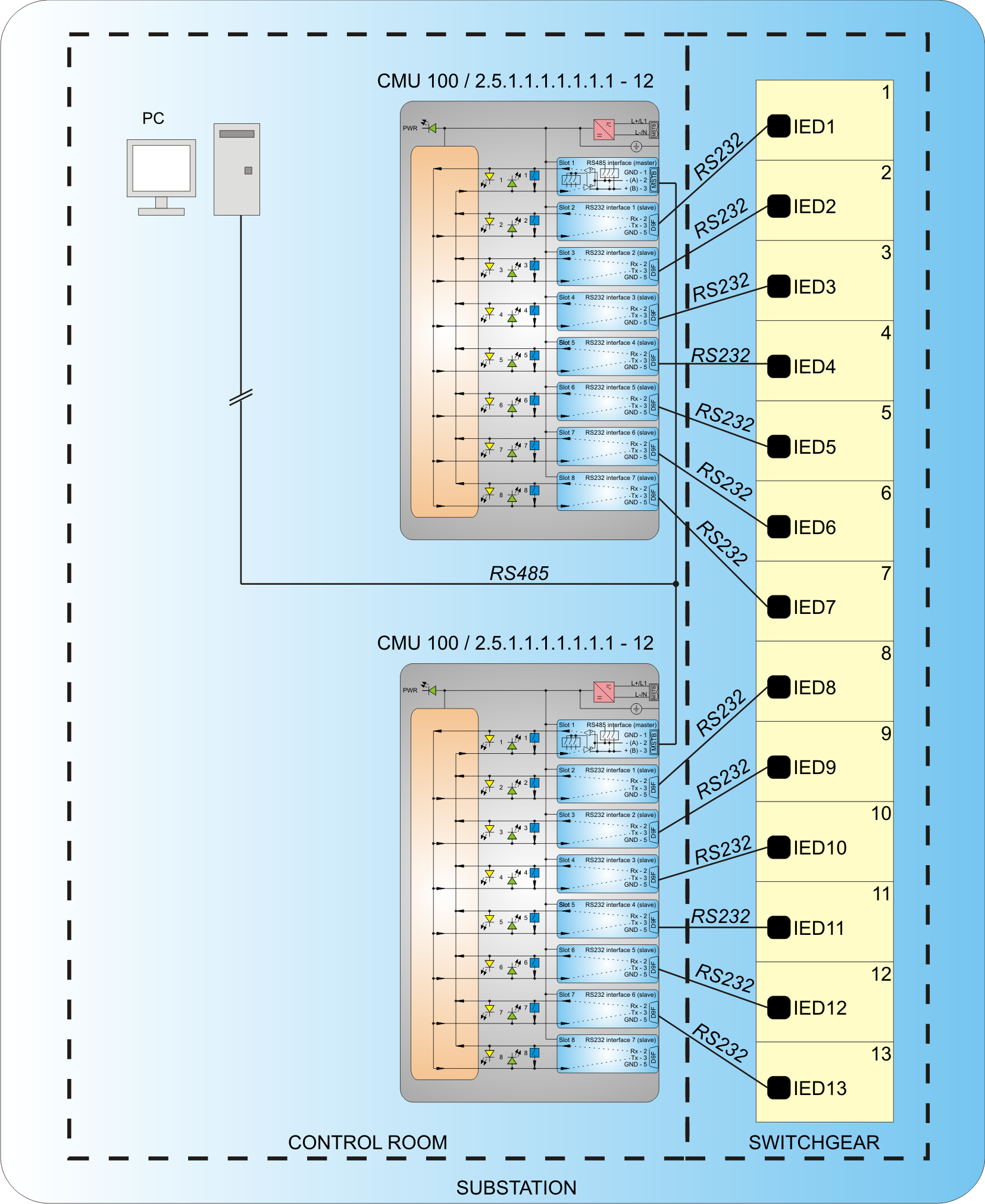

Typical application:

















Model types:

Port 1
Port 2-8
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
RS485
4x RS232
CMU 100 / 2.5.1.1.1.1 -12 CMU 100 / 8.5.1.1.1.1 -12
5x RS232
CMU 100 / 2.5.1.1.1.1.1 -12 CMU 100 / 8.5.1.1.1.1.1 -12
6x RS232
CMU 100 / 2.5.1.1.1.1.1.1 -12 CMU 100 / 8.5.1.1.1.1.1.1 -12
7x RS232
CMU 100 / 2.5.1.1.1.1.1.1.1 -12 CMU 100 / 8.5.1.1.1.1.1.1.1 -12





Downloads:

acrobatFlyer

acrobatUser manual

acrobatOrdering
