RS485 to 4x, 5x, 6x & 7x Multimode Fiber Optic converter & star coupler

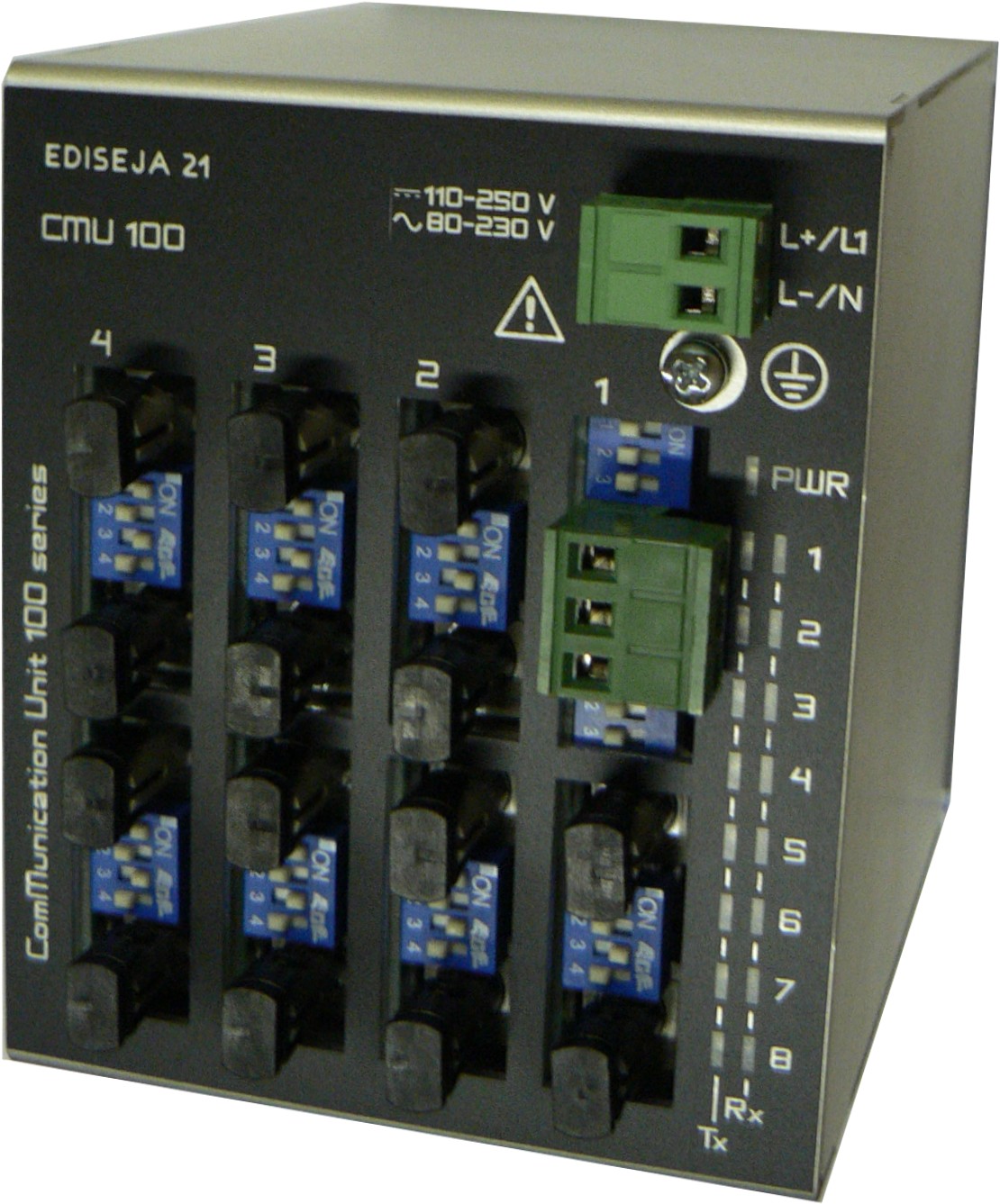

CMU100-2_5_6_6_6_6_6_6_6-x RS485 to 7x Multimode Fiber Optic converter star coupler photo















Description:

This type of CMU 100 star coupler is communication device that transfer data from one (master) to more than one (slave) port. Data is send from master port to all slave ports. On the other hand, data from either slave port is send to master port only. Example is when we need access to one device with several PCs. It can also be used when when we need access to multiple devices with one PC.
This device has one (master) half duplex, 2 wires RS485 interface that can be connected to the RS485 bus with up to 32 devices. Three types of RS485 interfaces, allow different data rate. Device data transfer rate depends on chosen RS485 interface. Star also coupler has 4x, 5x, 6x or 7x full duplex, 820 nm wave lenght multimode fiber optic (slave) interfaces with up to 1,5 km distance range, with ST or SMA connector and has user changable positive (light OFF when idle) or negative (light ON when idle) logic.
Converter has LED indication for power and LED indication for Rx and Tx lines for each interface.
Three types of power supplies allow connection to all common station batteries: 24 V DC, 48 V-60 V DC, 110 V-220 V DC voltage. Additionaly it can be also connected to standard 230 V AC voltage.
Housing is made from Aluminum and is intended for standard DIN35 rail.
This device is intended for use in cubicles and cabinets in all kinds of power production, transmission and distribution stations. It requires no maintenace. All normaly used connectors, switches and light indicators are accessed at the front side of the device.



Features:

- Integrated power supply, so no additional power supply adaptor needed
- Wide power supply input voltage for standard station batteries supply 110 V-220 V DC, 230 V AC or 48 V-60 V DC or 24 VDC
- Enclosure size 85 mm(W) x 105 mm(H) x 111 mm(D)
- Aluminum housing, standard DIN 35 rail mount
- Communication activity LED indication on each port
- 1,5 km distance with multimode fiber







Overview:

icon 485icon STicon SMAicon supplyicon adapticon dimicon DINicon PC

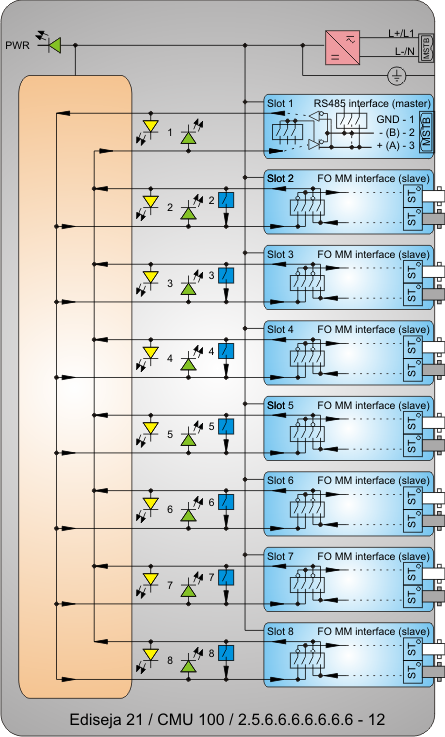

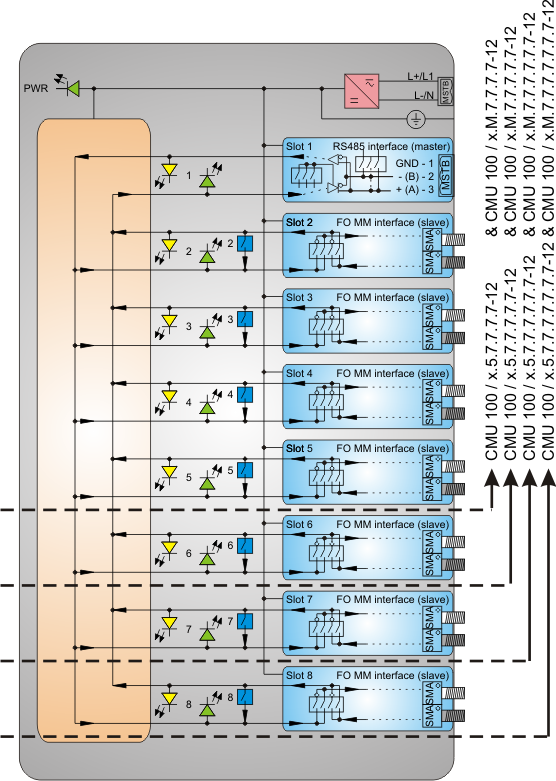

Schematic:

CMU100-2_5_6_6_6_6_6_6_6-12 RS485 to 7x Multimode Fiber Optic converter star coupler schematicPictures/CMU100-x_5_7_7_7_7_7_7_7-12-RS485-to-7x-Multimode-Fiber-Optic-star-couple-schematic

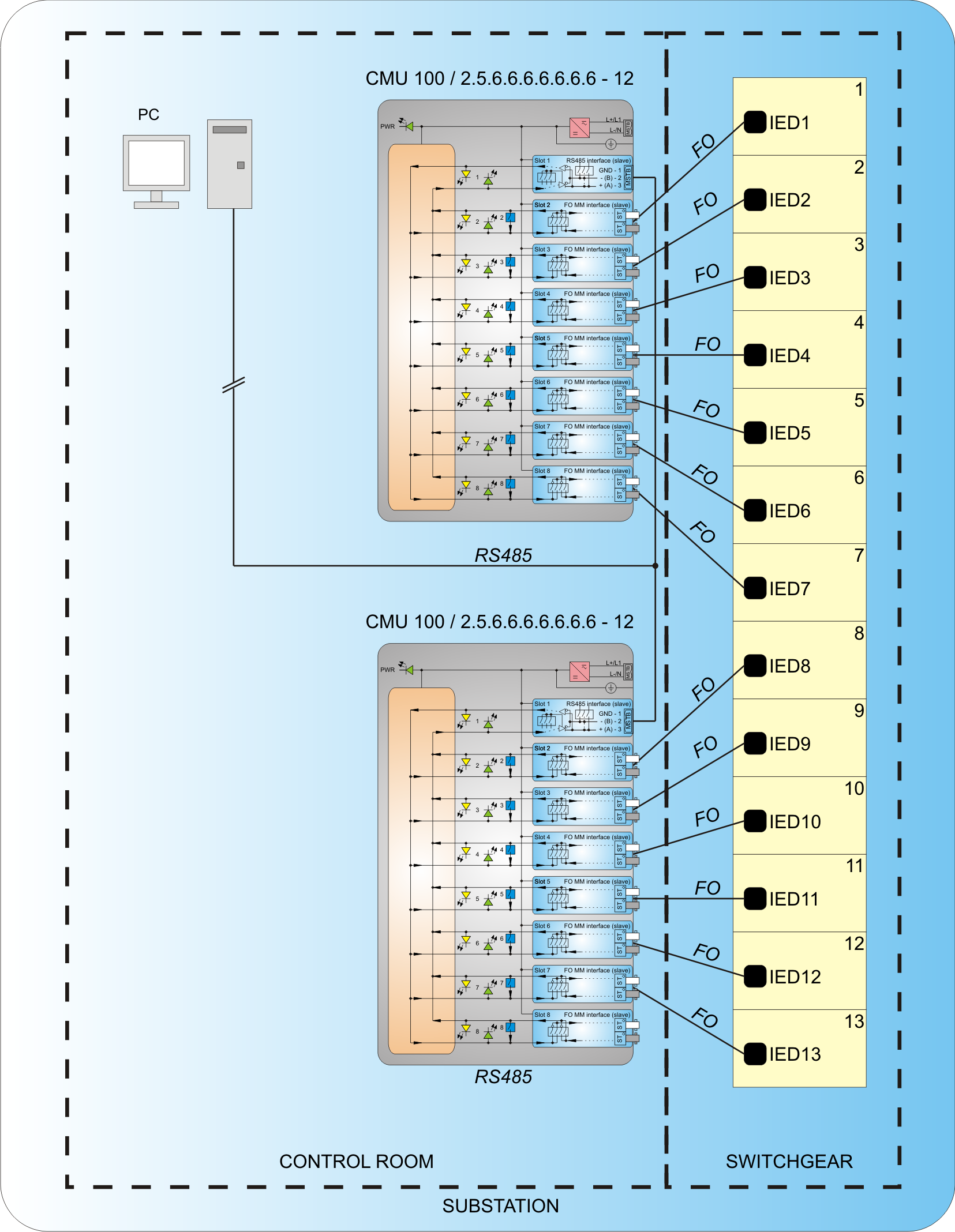

Typical application:

CMU100-2_5_6_6_6_6_6_6_6-12 RS485 to 7x Multimode Fiber Optic converter star coupler application



















Model types:

Port 1
Port 2-8
110 V-220 V DC, 230 V AC
48 V-60 V DC, 48 V AC
24 V DC
RS485 (19,2 kbit/s- 115,2 kbit/s)
4x MM FO
CMU 100 / 2.5.6.6.6.6 -12 CMU 100 / 8.5.6.6.6.6 -12 CMU 100 / 4.5.6.6.6.6 -12
5x MM FO
CMU 100 / 2.5.6.6.6.6.6 -12 CMU 100 / 8.5.6.6.6.6.6 -12 CMU 100 / 4.5.6.6.6.6.6 -12
6x MM FO
CMU 100 / 2.5.6.6.6.6.6.6 -12 CMU 100 / 8.5.6.6.6.6.6.6 -12 CMU 100 / 4.5.6.6.6.6.6.6 -12
7x MM FO
CMU 100 / 2.5.6.6.6.6.6.6.6 -12 CMU 100 / 8.5.6.6.6.6.6.6.6 -12 CMU 100 / 4.5.6.6.6.6.6.6.6 -12
RS485 (4,8 kbit/s - 38,4 kbit/s)
4x MM FO
CMU 100 / 2.M.6.6.6.6 -12 CMU 100 / 8.M.6.6.6.6 -12 CMU 100 / 4.M.6.6.6.6 -12
5x MM FO
CMU 100 / 2.M.6.6.6.6.6 -12 CMU 100 / 8.M.6.6.6.6.6 -12 CMU 100 / 4.M.6.6.6.6.6 -12
6x MM FO
CMU 100 / 2.M.6.6.6.6.6.6 -12 CMU 100 / 8.M.6.6.6.6.6.6 -12 CMU 100 / 4.M.6.6.6.6.6.6 -12
7x MM FO
CMU 100 / 2.M.6.6.6.6.6.6.6 -12 CMU 100 / 8.M.6.6.6.6.6.6.6 -12 CMU 100 / 4.M.6.6.6.6.6.6.6 -12
RS485 (300 kbit/s - 2400 bit/s)
4x MM FO
CMU 100 / 2.L.6.6.6.6 -12 CMU 100 / 8.L.6.6.6.6 -12 CMU 100 / 4.L.6.6.6.6 -12
5x MM FO
CMU 100 / 2.L.6.6.6.6.6 -12 CMU 100 / 8.L.6.6.6.6.6 -12 CMU 100 / 4.L.6.6.6.6.6 -12
6x MM FO
CMU 100 / 2.L.6.6.6.6.6.6 -12 CMU 100 / 8.L.6.6.6.6.6.6 -12 CMU 100 / 4.L.6.6.6.6.6.6 -12
7x MM FO
CMU 100 / 2.L.6.6.6.6.6.6.6 -12 CMU 100 / 8.L.6.6.6.6.6.6.6 -12 CMU 100 / 4.L.6.6.6.6.6.6.6 -12





Downloads:

acrobatFlyer CMU 100 series

acrobatFlyer

acrobatUser manual

acrobatOrdering
