Communication devices - CMU 100 series; 5-8 port converters & star couplers - 10/100Base-Tx to 4-7x Multimode Fiber optic

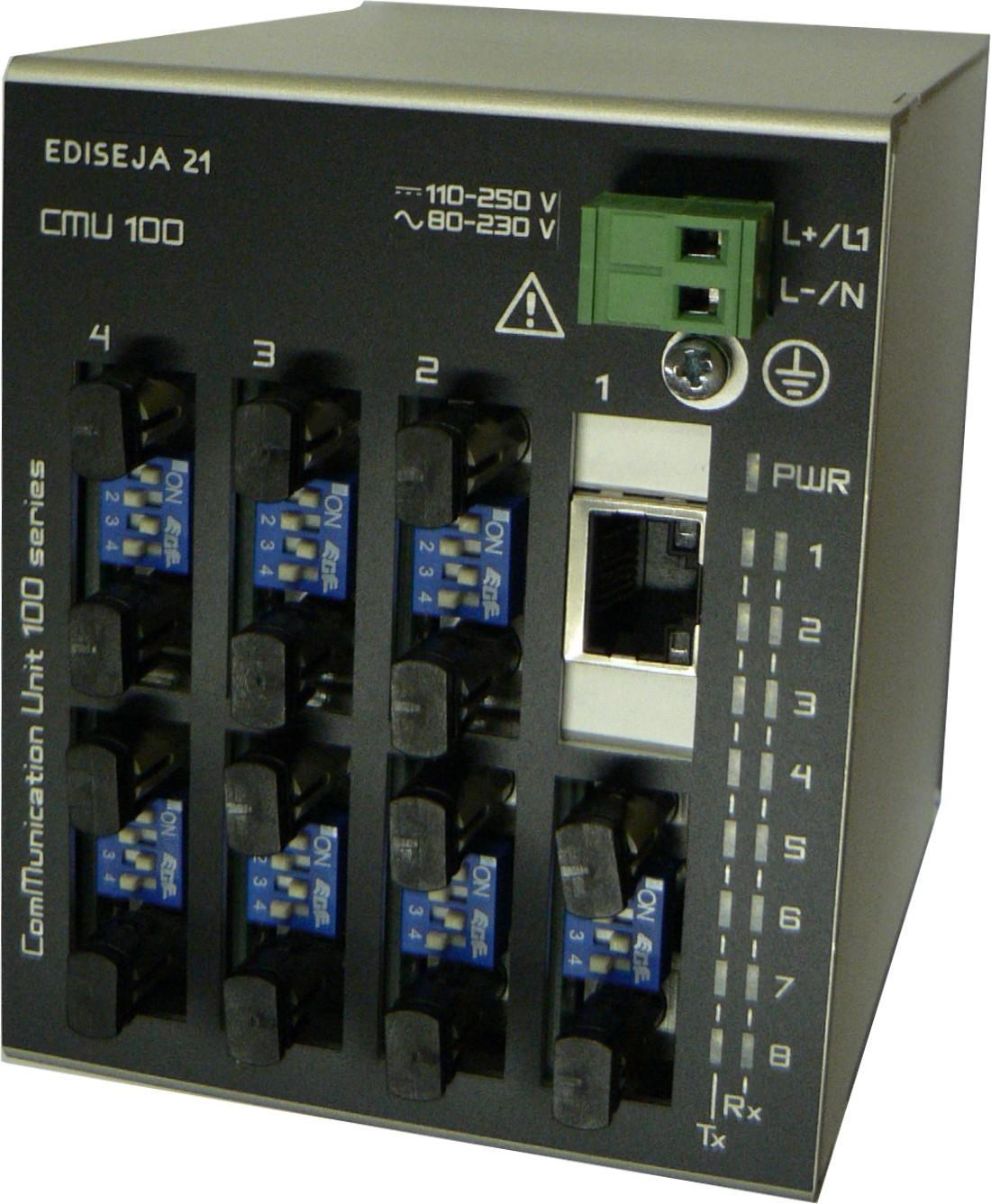

Photo: CMU

Features:

- Wide Supply Voltage (DC 88 - 350 V & AC 70 - 264 V or DC 38 - 72 V & AC 30 - 50 V)

- Power supply integrated, so no additional power supply adaptor needed

- Enclosure size 85 mm(W) x 105 mm(H) x 111 mm(D)

- Standard DIN 35 rail mount

- Tx and Rx Communication activity LED indication on all ports


Overview:

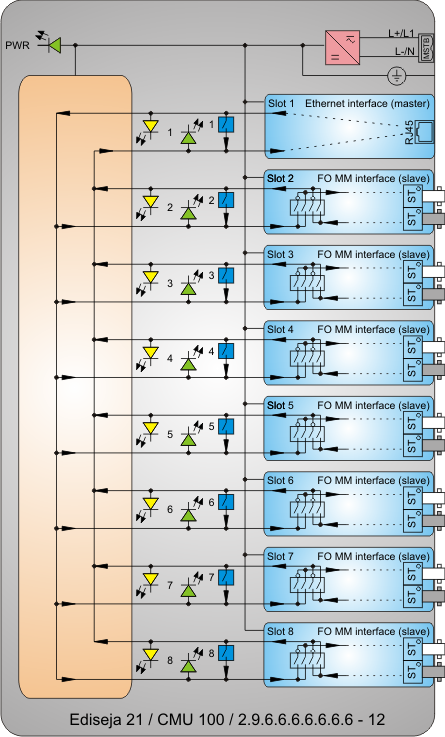

Schematic:

Typical application:

Model types:
Port 1
Port 2-8
DC 110 V-250 V, AC 230 V
DC 48 V-60 V, AC 48 V
10/100Base-Tx
4x MM FO
CMU 100 / 2.9.6.6.6.6 -12 CMU 100 / 8.9.6.6.6.6 -12
5x MM FO
CMU 100 / 2.9.6.6.6.6.6 -12 CMU 100 / 8.9.6.6.6.6.6 -12
6x MM FO
CMU 100 / 2.9.6.6.6.6.6.6 -12 CMU 100 / 8.9.6.6.6.6.6.6 -12
7x MM FO
CMU 100 / 2.9.6.6.6.6.6.6.6 -12 CMU 100 / 8.9.6.6.6.6.6.6.6 -12

Downloads:

acrobatProduct brief

acrobatUser manual

acrobatOrdering

Device installer

Com Port Redirector
