2x RS232 (master) to 4x RS232 (slave) (3 groups) & 2x RS232 (master) to 5x RS232 (slave) (3 groups) star couplerCommunication devices - CMU 200 / X x 2 . 232 x 39 - 15























Features:

- DC 110 V, DC 220 V or AC 230 V power supply voltage

- Redundant power supply option

- Standard 19" rack mount, 3U heigh

- Tx and Rx communication activity LED indication on all ports

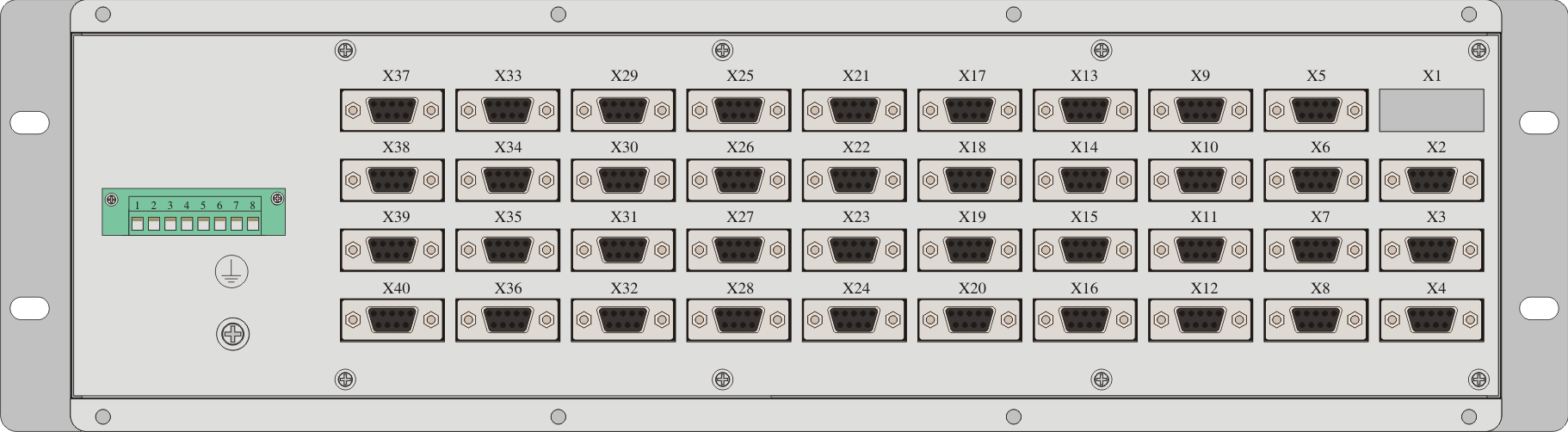

Overview:

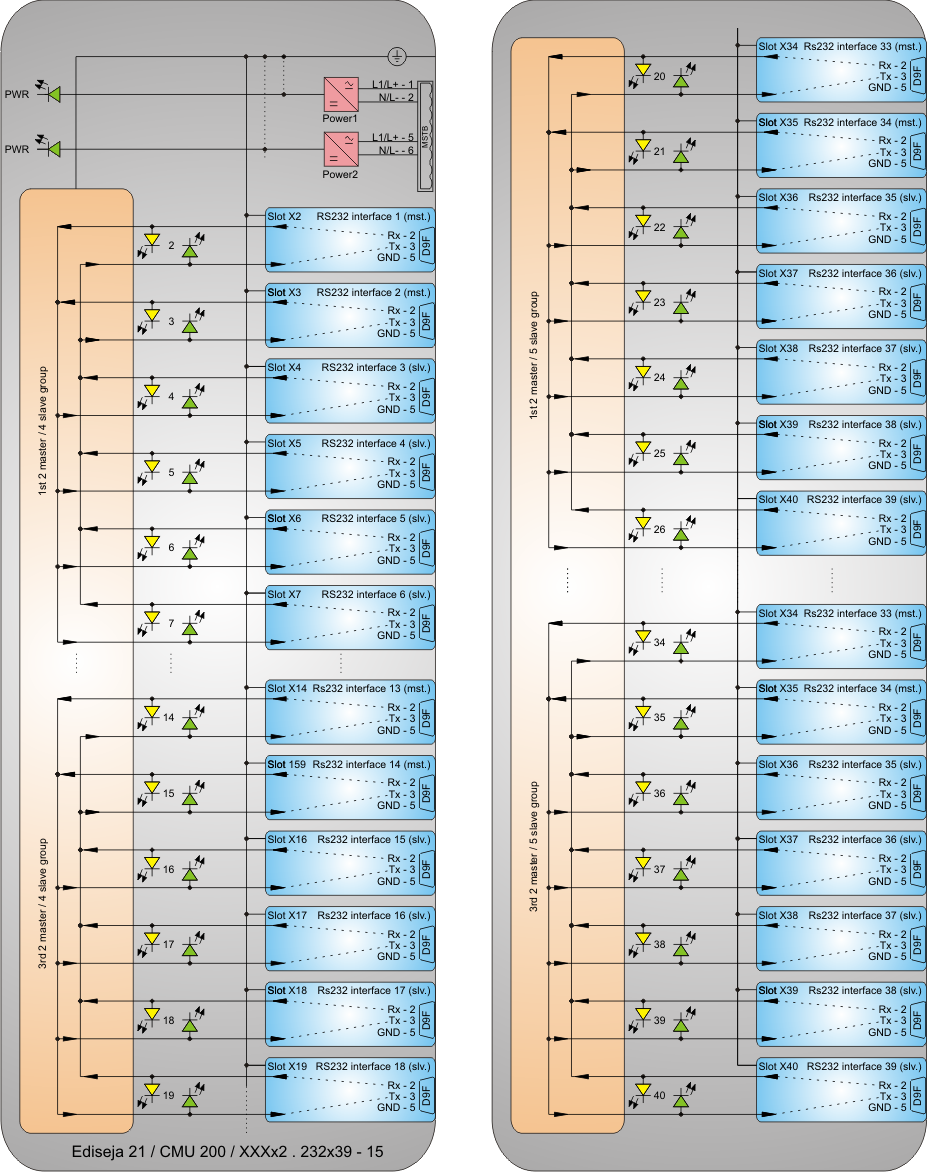

Schematic:

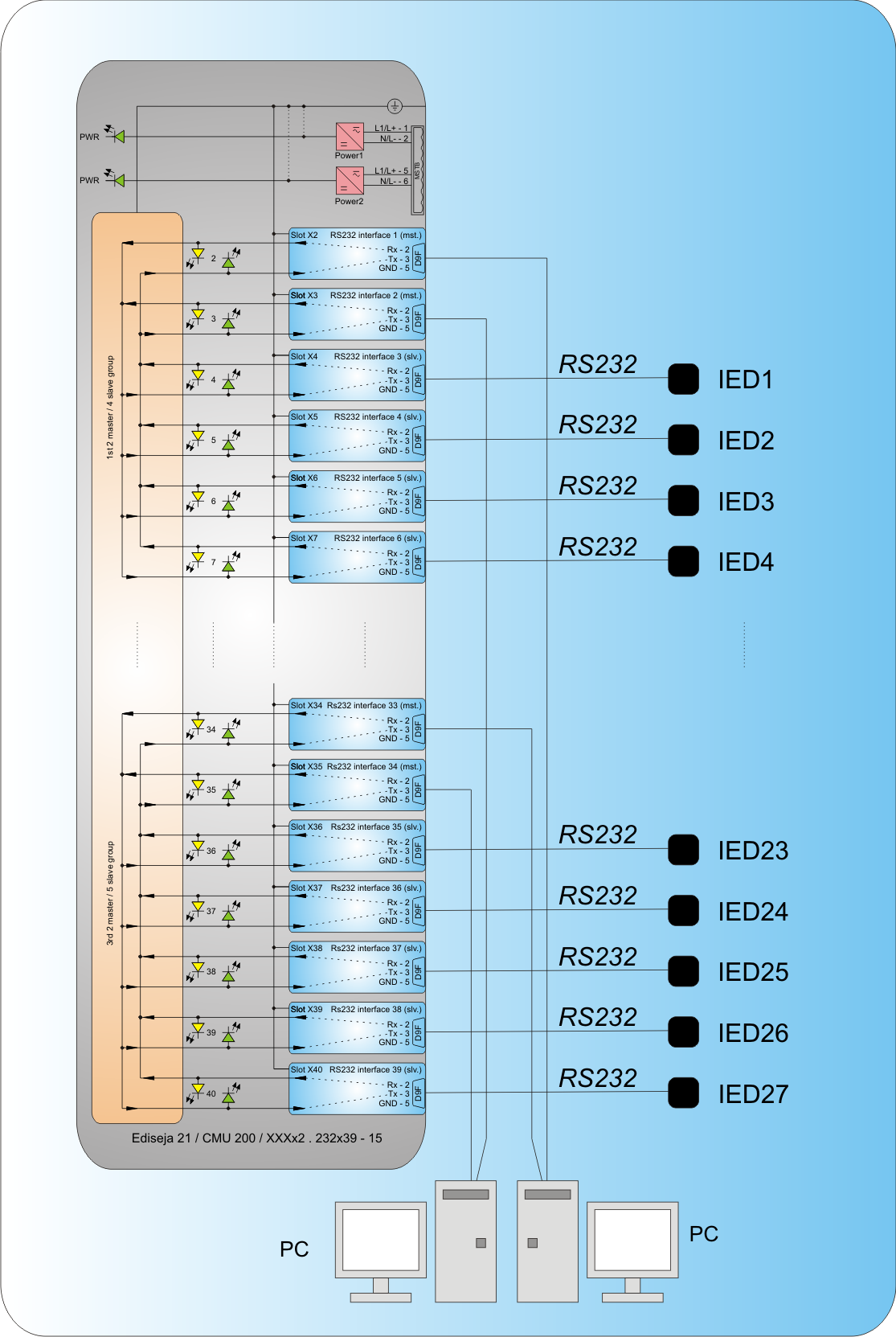

Typical application:















Model types:

Master ports	Slave ports	DC 220 V, AC 230 V (2x)	DC 110 V (2x)
RS232	RS232	CMU 200 / HAC x 2 . 232 x 39 - 15	CMU 200 / MDC x 2 . 232 x 39 - 15





Downloads:

User manual
