Communication devices - CMU 100 series; 9 - 40 port converters & star couplers; RS232 (master) to 2x RS232 (slave) star coupler (13 groups)

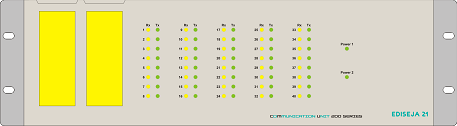

Appearance front: CMU

Appearance back:


Features:

- DC 110 V, DC 220 V or AC 230 V power supply voltage

- Redundant power supply option

- Standard 19" rack mount, 3U heigh

- Tx and Rx communication activity LED indication on all ports


Overview:

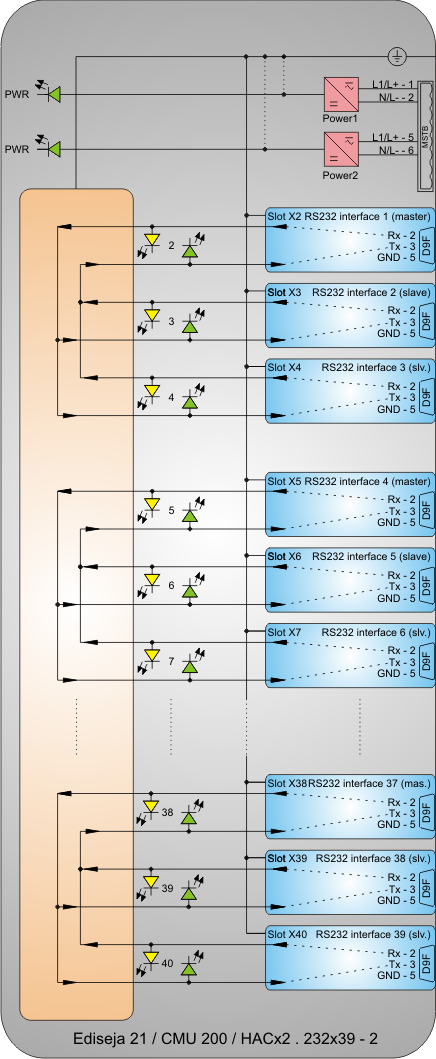

Schematic:

Typical application:

Model types:
Master ports
Slave ports
DC 220 V, AC 230 V (2x)
DC 110 V (2x)
RS232
RS232
CMU 200 / HAC x 2 . 232 x 39 - 2 CMU 200 / MDC x 2 . 232 x 39 - 2

Downloads:



acrobatUser manual
